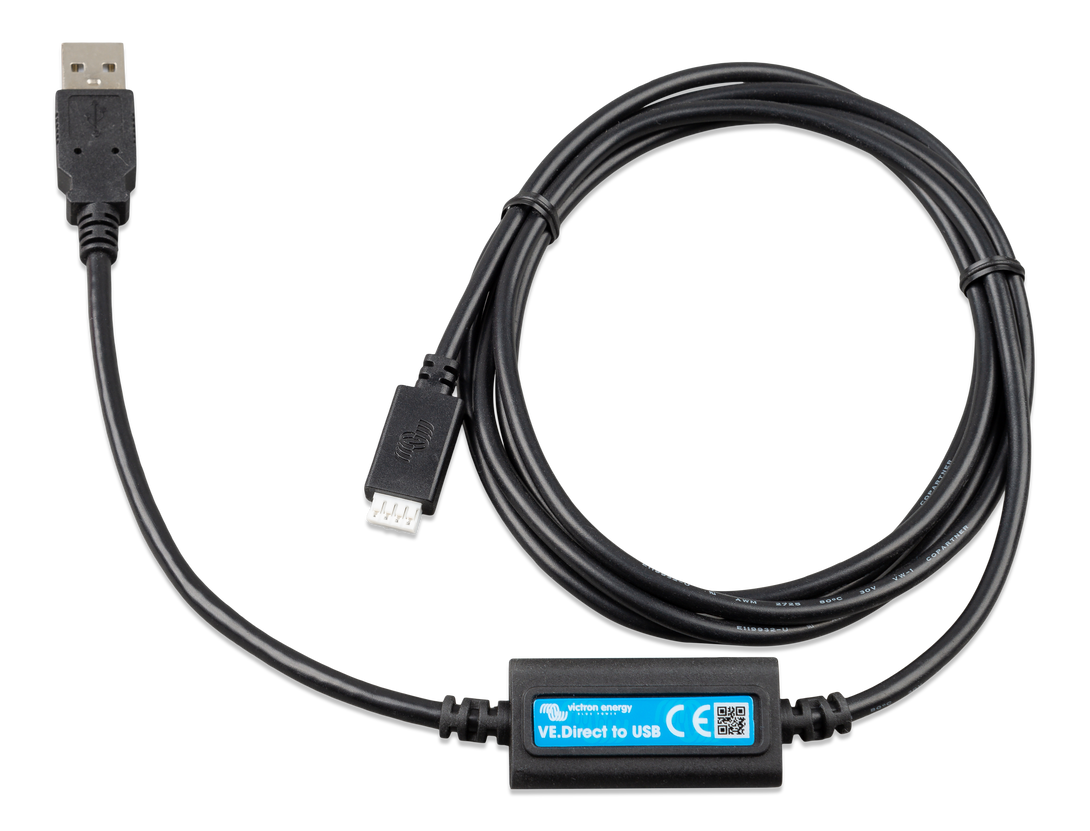

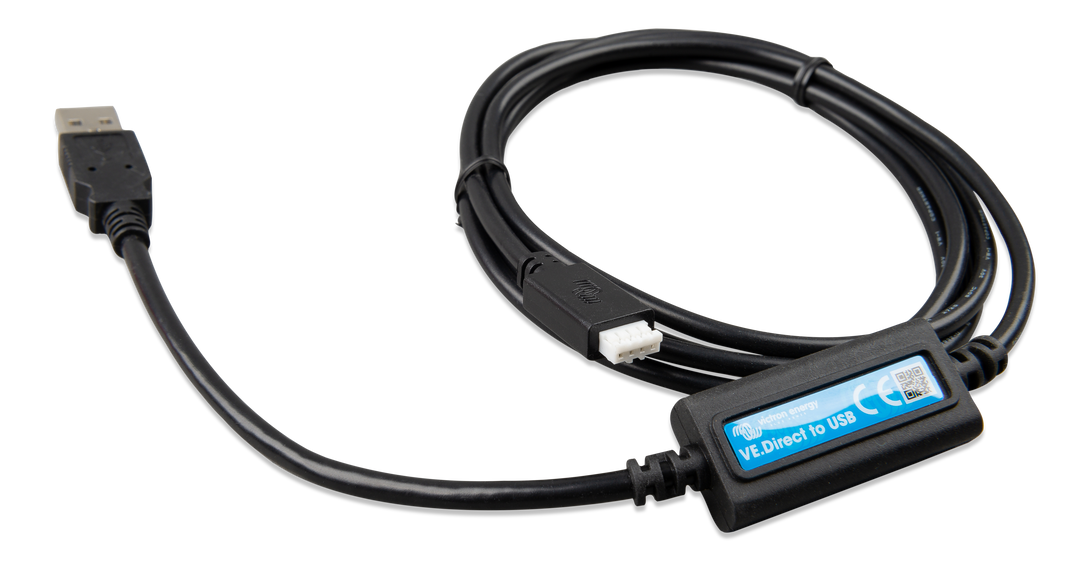

Victron VE.Direct to USB interface cable

Connect a VE.Direct-equipped Victron product to a USB port (computer or GX device) with this interface cable for monitoring and configuration.

Enables connection between a VE.Direct port and a standard USB port for configuration or monitoring. Supports system expansion by allowing additional VE.Direct-equipped devices to be connected via USB. Genuine Victron accessory ensures compatibility with VE.Direct-equipped Victron products. Easy to install: plug-and-play solution for USB-based monitoring or integration. Provides galvanic isolation (per Victron protocol) when used correctly for safe data communication.
£24.99
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ASS030530010
AVAILABLE IN 7-10 DAYS
Product Details

The Victron VE.Direct to USB interface cable provides a simple and reliable way to link a Victron product equipped with a VE.Direct port (for example an MPPT solar controller, battery monitor or inverter/charger) to a device with a USB connection such as a computer or a GX monitoring device.

This interface is also the recommended solution when you need to connect more VE.Direct devices than there are available VE.Direct ports on a GX device.

This interface cable accommodates data transfer, configuration and monitoring tasks via USB. It offers galvanic isolation when used as specified (see VE.Direct Protocol document).

Ideal for system integrators, off-grid installations, marine or RV applications where monitoring and configuration via a laptop or GX device are required.

Product Specifications

Key Features

  • Galvanic Isolation: A critical feature that reduces ground loop problems, protects connected equipment from electrical damage, and improves communication reliability in noisy electrical environments.
  • Plug-and-Play Integration: Recognized by most operating systems as a USB serial device, offering reliable communication for both temporary diagnostics and permanent installations.
  • Active Electronics: Features a built-in USB-to-serial converter (CC2530F256 chipset equivalent functionality) to translate proprietary data for computer use.
  • Firmware & Configuration: Allows users to change charging voltages, update device firmware, and perform deep-level configuration that may not be available via standard controls.

Compatible Victron ProductsThis interface is compatible with any Victron device specifically fitted with a 4-pin VE.Direct port, including:

  • Solar Charge Controllers: SmartSolar MPPT series and BlueSolar MPPT series (VE.Direct versions).
  • Battery Monitors: BMV-700, BMV-702, BMV-712 Smart, and SmartShunt.
  • Inverters: Phoenix Inverter VE.Direct models.
  • DC-DC Chargers: Orion XS and Orion-Tr Smart models equipped with VE.Direct.

Software & OS Compatibility

  • VictronConnect: The primary application for Windows and macOS used to monitor live measurements, view history, and export data.
  • Venus OS: Fully compatible with Cerbo GX, Ekrano GX, and Raspberry Pi 3/4/5 systems running Venus OS.
  • Operating Systems: Native support for Windows, macOS, Linux, and Raspberry Pi OS.
  • USB Hub Support: Supports the use of multiple simultaneous cables when connected through a powered USB hub.

Technical Specifications

  • Manufacturer: Victron Energy
  • Part Number: ASS030530010
  • USB Connector: USB Type-A
  • Device Connector: 4-pin JST VE.Direct
  • Interface Type: Active USB-to-serial interface
  • Baud Rate Support: Optimized for Victron VE.Direct protocol standards

Usage Limitations

  • Device Specific: Only works with VE.Direct-enabled devices; not compatible with VE.Bus equipment (which requires an MK3-USB interface).
  • Host Requirement: Requires a USB host (PC, Mac, or GX device) to operate.
  • Data Only: This is a communication interface and does not function as a charging cable or a passive adapter.
