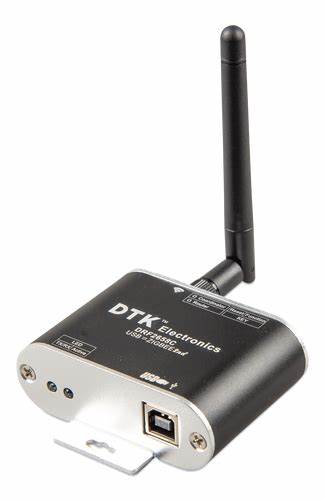

Zigbee to USB converter

The Victron Zigbee to USB Converter enables wireless communication between Victron Energy Meters and GX devices, facilitating seamless energy monitoring. It connects to the GX device via USB, allowing for easy installation and setup.

Wireless Communication: Eliminates the need for wired connections between energy meters and GX devices. Easy Installation: Simple USB connection to GX devices for quick setup. Seamless Integration: Compatible with Victron Energy Meters for efficient energy monitoring. Enhanced Monitoring: Provides real-time data transmission for accurate energy usage analysis. Reliable Performance: Designed for stable and consistent wireless communication. Dimensions: 70 x 24 x 67mm Weight: 0.125kg
£117.60 £102.90 SAVE £14.70
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ASS300420200
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Zigbee to USB Converter is designed to facilitate wireless communication between Victron Energy Meters and GX devices. By connecting the converter to the GX device via USB, it enables seamless energy monitoring without the need for complex wiring. This converter is ideal for installations where wired connections are impractical or undesirable, providing flexibility and ease of setup.

Once connected, the converter allows for real-time data transmission from the energy meter to the GX device, enabling accurate monitoring of energy usage. This functionality is particularly beneficial for off-grid systems, marine applications, and other scenarios where efficient energy management is crucial.

Product Specifications

Electrical Parameters

  • Power Supply: 5V via USB Port
  • Operating Current (Sending): 120 mA (Max)
  • Operating Current (Receiving): 45 mA (Max)
  • Operating Current (Standby): 40 mA (Max)
  • Operating Temperature Range: -40°C to +85°C

Wireless & Communication Specifications

  • Protocol: Zigbee 2007
  • Radio Frequency: 2460 MHz (Default)
  • Frequency Range: 2405 MHz – 2480 MHz (Step: 5 MHz)
  • Transmission Distance: 1600 metres (Visible, open transmission distance)
  • Receiver Sensitivity: -110 dBm
  • UART Baud Rate: 38400 bps (Default)
  • Supported Baud Rates: 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
  • Main Chip: CC2530F256 (256K FLASH)
  • Configurable Nodes: Coordinator, Router
  • Default Factory Settings: Router, PAN ID=0x199B, Channel=22 (2460 MHz)

Mechanical Specifications

  • Dimensions (L x W x H): 70 x 50 x 24 mm
  • Interface: USB Port (includes USB cable)
  • Antenna: External antenna included (RP-SMA connection)
  • LED Indicators: Active, TX/RX status monitoring
