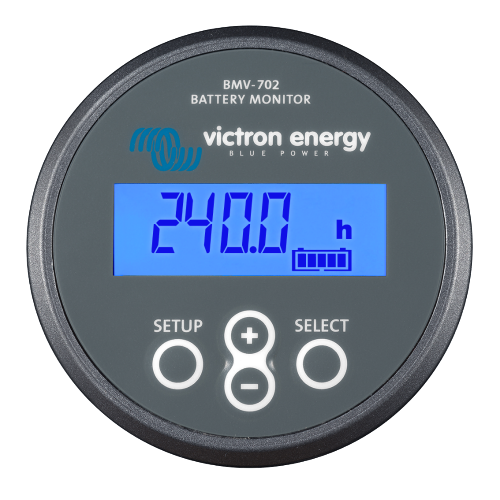

Victron Battery Monitor BMV-702

The Victron BMV-702 Battery Monitor provides precise monitoring of battery voltage, current, and state of charge in high-accuracy applications. Designed for 6.5–95 VDC battery systems, it is ideal for off-grid, marine, and backup power systems.

High-Voltage Compatibility Accurate Monitoring Comprehensive Data Logging User-Friendly Interface Versatile Connectivity
£137.00 £115.00 SAVE £22.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: BAM010702000R
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

Keep your battery system under control with the Victron BMV-702 Battery Monitor (SKU BAM010702000R). Designed for high-voltage applications, it provides real-time, precise readings of voltage, current, ampere-hours used, and state of charge.

With its 500 A/50 mV shunt in a protective enclosure and a 10 m RJ12 UTP connection cable, installation is flexible and straightforward. The monitor logs historical data, including deepest discharge, average discharge, and the number of charge/discharge cycles, helping you monitor battery health and extend system life.

The clear digital display and simple four-button interface make it easy to read and configure. Compatible with VE.Direct devices and VictronConnect via Bluetooth, the BMV-702 allows remote monitoring and integration with GX systems.

Dimensions:

  • Head Unit (Round Front): Diameter 68.7 mm
  • Front Bezel: 69 x 69 mm
  • Body Diameter: 52 mm
  • Depth: 30.6 mm
  • Shunt Enclosure: 120 x 79 x 8 mm
  • Shunt Connection Bolts: M10

These compact dimensions make it easy to install in standard battery compartments or control panels.

Product Specifications

Technical Specifications

Combined for SKUs: BAM010702000R

Audible Alarm On Device: Yes

Automotive Directive: ECE R10-4,EN 50498

Aux Cable: 1.5m cable with 1A fuse

Aux Input Fo Auxiliary Battery Voltage: Yes

Battery Capacity Measurement Range: [1, 9,999] Ah

Bluetooth: No

Body Depth: 31 mm

Body Diameter: 52 mm

Capacity Measurement Resolution: 0.1 Ah

Colour: Grey

Communication Port: VE.Direct

Current Draw: 4 mA

Current Measurement Accuracy: 0.4 %

Current Measurement Resolution: 0.01 A

Current Rating: 500 A

Data Retention Period: 46 d

Display: Yes

Display Shunt Cable: 10 metre 6-core UTP with RJ12 connectors

Emisison Immunity: EN 55014-1,EN 55014-2

Front Bezel: 69 x 69 mm

Front Diameter: 63 mm

Input Voltage Measurement Range Auxiliary Battery: [6.5, 95] VDC

Installation: Flush mount

Measurement Accuracy: 0.4 %

Positive Cable: 1.5m cable with 1A fuse

Programmable Relay: Normally open 60V / 1A

Protection Category: IP55 (not for outdoor use)

Safety: EN-IEC 60335-1

Shunt: 500A / 50mV (included)

Shunt Connection Terminals: M10 bolts

State Of Charge Measurement Resolution: 0.1 %

Supply Voltage Range: [6.5, 95] VDC

Temperature Sensor: Optional (ASS000100000)

Time To Go Measurement Resolution: 1 min

Visual Alarm On Device: Yes

Voltage Measurement Accuracy: 0.3 %

Voltage Measurement Resolution: 0.01 V

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron Battery Monitor BMV-702 - Manual
Victron Battery Monitor BMV-702 - Data Sheet
