Victron Temperature sensor for BMV-702/712

The Victron Temperature Sensor is an optional accessory for the BMV-702 and BMV-712 battery monitors. When used via the auxiliary input set to “TEMP”, it enables the monitor to read battery temperature. This allows automatic adjustment of displayed battery capacity and aids in more accurate state of charge readings. The sensor enhances battery health by allowing charging or monitoring behaviour to adapt based on battery temperature.

Key Features

• Enables battery temperature monitoring for BMV-702 and BMV-712
• Auxiliary input can be configured to “TEMP” so the monitor displays temperature in °C or °F

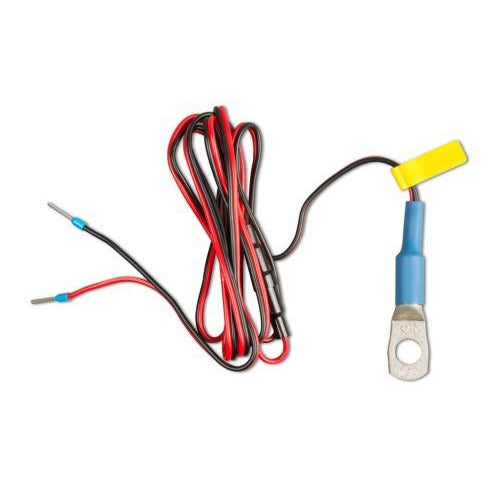

• Uses a dedicated temperature sensor cable (part no: ASS000100000) sold separately
• Helps adjust capacity readouts based on temperature, especially below 20 °C
• Improves battery performance by compensating for temperature effects

Technical Specs (at a glance)

• Works with BMV-702 & BMV-712 monitors only
• Auxiliary input option: TEMP
• Temperature can be displayed in °C or °F
• Capacity derating: typical decrease compared to capacity at 20 °C (e.g. ~ 18% at 0 °C, ~ 40% at −20 °C)
• Separate sensor cable required (ASS000100000)
• Sensor cable includes a red wire (power) and black wire (signal), plus an M8 cable lug

Applications

• Solar battery systems using BMV-702 or BMV-712 monitors
• Marine and RV battery setups where temperature varies widely
• Off-grid installations in hot or cold environments
• Any system where battery capacity or charging behaviour depends on temperature
