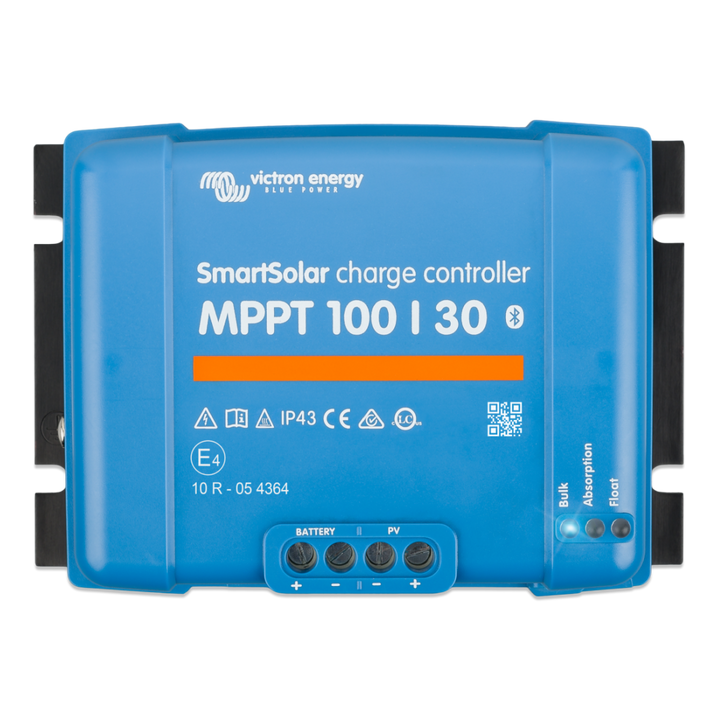

Victron MPPT 100/30 - SmartSolar Charge Controller

MPPT optimised for efficient solar charging. Monitor remotely with built in Bluetooth. 100V max voltage & 30A max current from the solar array. For 12V and 24V systems.
£243.60 £89.00 SAVE £154.60
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC110030210
AVAILABLE IN 7-10 DAYS
Product Details

Efficient Solar Power Harvesting:

The Victron MPPT 100/30 SmartSolar charge controller optimally harvests power from solar panels, intelligently charging your leisure batteries and preventing overcharging for enhanced battery protection.

SmartSolar Functionality for Control:

Benefit from SmartSolar functionality, enabling wireless connectivity to the Victron Connect app via Bluetooth. Adjust settings and monitor performance conveniently over time for a seamlessly controlled solar charging experience.

Fast and Intelligent Charging Technology:

Using the latest MPPT technology, the charge controller maximizes solar energy harvest, achieving a full charge in the shortest possible time. It also maintains battery health, extending overall battery life. The MPPT 100/30 model handles a maximum input voltage of 100V and a maximum input current of 30A.

MPPT Technology Advantage:

MPPT technology constantly monitors solar panel voltage and current output, efficiently extracting maximum power even in partially clouded or changing light conditions. Recommended for applications like campervans, boats, and off-grid tiny houses due to superior efficiency compared to PWM charge controllers.

Intelligent Load Output and Battery Maintenance:

The intelligent load output function prevents battery damage from excessive draining, with configurable voltage settings. The innovative BatteryLife feature ensures a 100% recharge attempt daily, adjusting disconnect voltage during poor weather to maintain battery health and extend its lifespan.

Convenient Connection Points:

Equipped with Tr screw terminal connection points, the charge controller simplifies the connection process. Strip input and output wires and fix them securely to the screwed terminal for a reliable and user-friendly setup.
Product Specifications

Technical Specifications

Combined for SKUs: SCC110030210

Battery Voltage Auto Select: 12V / 24V (

Bluetooth: Yes

Charge Algorithm: Multi-stage adaptive (adjustable)

Charge Voltage Absorption: 14.4V / 28.8V (adjustable)

Charge Voltage Float: 13.8V / 27.6V (adjustable)

Colour: Blue (RAL 5012)

Data Retention Period: 46 d

Data Stored: Battery voltage,Battery current,Battery temperature,Load output Current,PV voltage,PV current

Depth: 70 mm

Height: 130 mm

Max Efficiency: 98 %

Max Humidity: 95 %

Max PVOpen Circuit Voltage: 100 V

Max PVShort Circuit Current: 35 A

Nominal PVpower12V: 440 W

Nominal PVpower24V: 880 W

Number Of Trackers: 1

Protection Category: IP22 (connection area),IP43 (electronic components)

Protections: Output short-circuit,Excessive temperature,PV reverse polarity

Rated Charge Current: 30 A

Safety: UL 1741,CSA C22.2,EN-IEC 62109-1

Self Consumption: 12V: 30mA / 24V: 20mA

Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

Temperature Sensor: Optional (Smart Battery Sense)

Weight: 1.3 kg

Width: 186 mm

Source: Victron
