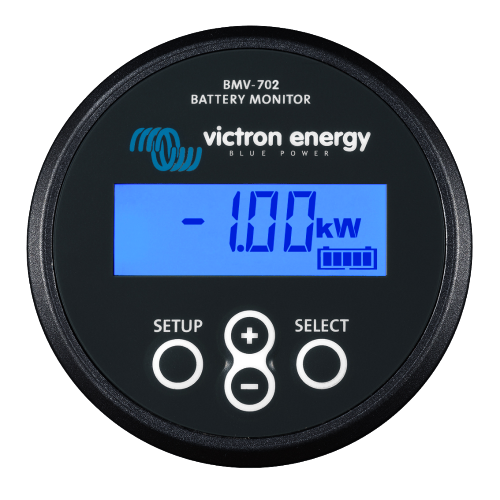

Victron Battery Monitor BMV-702 BLACK

The Victron BMV-702 BLACK Battery Monitor is a high-precision device designed to monitor battery voltage, current, and state of charge in systems with voltages ranging from 6.5 to 95 VDC.

High-Voltage Compatibility Accurate Monitoring Comprehensive Data Logging User-Friendly Interface Versatile Connectivity
£193.20 £122.00 SAVE £71.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: BAM010702200R
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

Take full control of your battery system with the Victron BMV-702 BLACK Battery Monitor. Designed for 6.5–95 VDC systems, this high-precision monitor delivers real-time readings of voltage, current, ampere-hours consumed, and state of charge.

Built for reliability, it includes a 500 A/50 mV shunt in a protective enclosure and a 10 m RJ12 UTP cable for flexible installation. Track battery performance over time with historical data logging, including deepest discharge, average discharge, and cycle counts.

The clear digital display and intuitive four-button interface make setup and monitoring easy. VE.Direct compatibility and Bluetooth connectivity with VictronConnect allow remote monitoring and integration with GX devices.

Dimensions:

  • Head Unit (Round Front): Diameter 68.7 mm
  • Front Bezel: 69 x 69 mm
  • Body Diameter: 52 mm
  • Depth: 30.6 mm
  • Shunt Enclosure: 120 x 79 x 8 mm
  • Shunt Connection Bolts: M10

Compact, robust, and easy to install, the BMV-702 BLACK is perfect for off-grid systems, marine vessels, RVs, and backup power applications.

Product Specifications

Electrical Specifications

  • Supply Voltage Range: 6.5 – 95 VDC
  • Current Draw (Backlight Off): < 4 mA
  • Input Voltage Range, Auxiliary Battery: 6.5 – 95 VDC
  • Battery Capacity (Ah): 1 – 9999 Ah
  • Operating Temperature Range: -40 to +50°C (-40 to 120°F)
  • VE.Direct Communication Port: Yes
  • Relay: 60V / 1A normally open (function can be inverted)

Resolution & Accuracy (with included 500A shunt)

  • Current Resolution: ± 0.01A
  • Voltage Resolution: ± 0.01V
  • Amp Hours Resolution: ± 0.1 Ah
  • State of Charge (0 – 100%): ± 0.1%
  • Time to Go: ± 1 min
  • Temperature Resolution: ± 1°C/°F (with optional sensor)
  • Current Measurement Accuracy: ± 0.4%
  • Voltage Measurement Accuracy: ± 0.3%

Monitoring & Programming

  • Standard Displays: Voltage, current, power, ampere-hours consumed, state of charge, and remaining time.
  • Midpoint Voltage Monitoring: Dedicated feature to monitor battery bank health by measuring the voltage halfway along a series string to detect cell or battery failure.
  • Auxiliary Input Functionality: Measures voltage of a second battery (e.g., starter battery), battery temperature, or midpoint voltage.
  • History Storage: Stores a wide range of historical events to evaluate usage patterns and battery health.
  • Visual/Audible Alarms: Fully programmable alarms for voltage, state of charge, and more.
  • Bluetooth Connectivity: Compatible with the VE.Direct Bluetooth Smart dongle (sold separately) for wireless monitoring and setup via smartphones.

Installation & Dimensions

  • Installation Type: Flush mount
  • Front Diameter: 63 mm
  • Front Bezel: 69 x 69 mm (2.7 x 2.7 inch)
  • Body Diameter: 52 mm (2.0 inch)
  • Body Depth: 31 mm (1.2 inch)
  • Shunt Connection Bolts: M10 (0.3937 inch)
  • Protection Category: IP55 (not intended for outdoor use)

Included Accessories

  • Shunt: 500A / 50mV with quick connect PCB.
  • RJ12 Cable: 10-meter 6-core UTP cable.
  • Battery Cable: 2-meter cable with 1A slow-blow fuse for '+' connection.
  • Mounting Hardware: Separate front bezel (square or round appearance), securing ring for rear mounting, and screws for front mounting.

Standards & Safety

  • Safety: EN 60335-1
  • Emission / Immunity: EN 55014-1 / EN 55014-2
  • Automotive: ECE R10-4 / EN 50498
