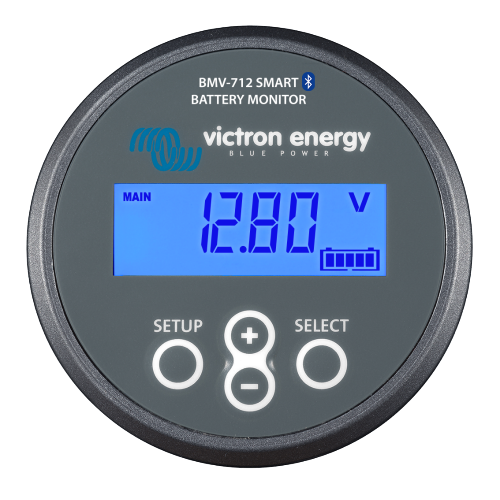

Victron BMV-712 Smart Battery Monitor

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

Monitors the state of charge of your leisure batteries Quickly check your battery’s charge via Bluetooth Includes digital display of voltage and % of charge
£223.20 £133.99 SAVE £89.21
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: BAM030712000R
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Energy BMV-712 Smart Battery Monitor stands out as Victron Energy's premier battery monitoring solution, offering a simple yet effective way to keep tabs on your electrical system. Featuring an intuitive screen designed for electrical system control panels, this smart battery monitor is equipped with Bluetooth connectivity, enabling seamless monitoring through the VictronConnect app.

Key Features:

Comprehensive Monitoring:

Keep track of crucial battery parameters, including state of charge, temperature, and voltage.
Monitor incoming and outgoing loads, providing real-time insights into your electrical system's performance.


VictronConnect App:

Utilize the VictronConnect app, available for download on Android and iOS devices, to access advanced monitoring and customization features.
View all important data on a single screen, customize settings, and access historical data effortlessly.
Enjoy the flexibility to update the software whenever new features are introduced.


Bluetooth Connectivity:

Built-in Bluetooth functionality enables wireless communication with the VictronConnect app, ensuring convenient and cable-free monitoring.


Temperature Sensor Compatibility:

Connect the BMV-712 to your leisure batteries using the separately available temperature sensor (not included). This enhances accuracy by incorporating temperature data into the monitoring process.


Easy Installation:

Electrical connections are simplified through the quick-connect PCB on the shunt, streamlining the installation process.
The shunt, which is included, connects to the monitor using a standard RJ12 telephone cable.


Included Components:

Comes with a 500A shunt to facilitate accurate current measurement.
A 10m RJ12 cable is included for connecting the shunt to the monitor.
Front bezel included for both square and round display appearances.
Securing ring provided for rear mounting, along with screws for front mounting.


Versatile Mounting Options:

Front bezel and securing ring allow for flexible mounting options, catering to both square and round display preferences.

Product Specifications

Technical Specifications

Combined for SKUs: BAM030712000R

Audible Alarm On Device: Yes

Automotive Directive: ECE R10-4,EN 50498

Aux Cable: 1.5m cable with 1A fuse

Aux Input Fo Auxiliary Battery Voltage: Yes

Battery Capacity Measurement Range: [1, 9,999] Ah

Bluetooth: Yes

Body Depth: 31 mm

Body Diameter: 52 mm

Capacity Measurement Resolution: 0.1 Ah

Colour: Grey

Communication Port: VE.Direct

Current Draw: 1 mA

Current Measurement Accuracy: 0.4 %

Current Measurement Resolution: 0.01 A

Current Rating: 500 A

Data Retention Period: 46 d

Data Stored: Battery voltage,Battery current,Battery temperature,Battery state of charge percentage,Battery midpoint deviation,Starter battery voltage

Display: Yes

Display Shunt Cable: 10 metre 6-core UTP with RJ12 connectors

Emisison Immunity: EN 55014-1,EN 55014-2

Front Bezel: 69 x 69mm

Front Diameter: 63 mm

Input Voltage Measurement Range Auxiliary Battery: [6.5, 70] VDC

Installation: Flush mount

Measurement Accuracy: 0.4 %

Positive Cable: 1.5m cable with 1A fuse

Programmable Relay: Bistable relay 60V / 1A , normally open (function can be inverted)

Protection Category: IP55 (not for outdoor use)

Safety: EN 60335-1

Shunt: 500A / 50mV

Shunt Connection Terminals: M10 bolts

State Of Charge Measurement Resolution: 0.1 %

Supply Voltage Range: [6.5, 70] VDC

Temperature Sensor: Optional (ASS000100000)

Time To Go Measurement Resolution: 1 min

Visual Alarm On Device: Yes

Voltage Measurement Accuracy: 0.3 %

Voltage Measurement Resolution: 0.01 V

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron BMV-712 Smart Battery Monitor - Manual
Victron BMV-712 Smart Battery Monitor - Data Sheet
