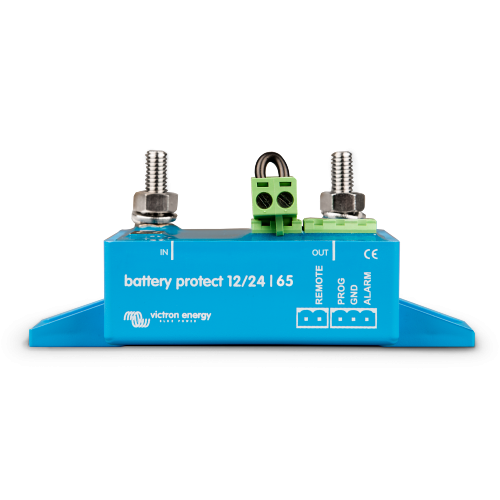

Victron BatteryProtect 12/24V-65A

Keep your battery safe and healthy with the Victron BatteryProtect 12/24V-65A. Designed to automatically disconnect non-essential loads before your battery discharges too deeply, ensuring longer service life and dependable power availability.

Prevents Deep Battery Discharge Auto Voltage Detection (12/24 V) Handles Up to 65 A Continuous Load Supports Remote Control Operation Compact and Easy to Install Dimensions: 40 × 48 × 106mm Weight: 0.2 kg
£48.00 £31.99 SAVE £16.01
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: BPR000065400
IN STOCK
Receive between -

Frequently Bought Together

  • Victron BatteryProtect 12/24V-65A
Total price:£48.00 £31.99
  • This item: Victron BatteryProtect 12/24V-65A £48.00 £31.99
Product Details

The Victron BatteryProtect 12/24V-65A safeguards your battery by automatically disconnecting non-essential loads when voltage drops below a set threshold. This prevents deep discharge and damage, extending battery life and maintaining reliability for your essential systems.

The unit automatically detects 12 V or 24 V system voltage and works with a wide voltage range from 6 V to 35 V. With a continuous current rating of 65 A and a short-term peak capacity of 250 A, it’s ideal for small to medium-sized electrical systems used in marine, automotive, RV, and off-grid power setups.

The BatteryProtect can also serve as a system on/off switch, operated via its built-in input, and features a remote control connection for easy integration with smart energy systems. Compact, lightweight, and simple to install, it delivers the durability and quality Victron is known for.

Dimensions (H × W × D): 40 × 48 × 106 mm
Weight: 0.2 kg

Product Specifications

Electrical Specifications

  • Maximum Continuous Load Current: 65A
  • Peak Current (during 30 seconds): 250A
  • Operating Voltage Range: 6 – 35V
  • System Voltage Detection: 12/24V auto-ranging
  • Current Consumption (When on): 1.5 mA
  • Current Consumption (When off/low voltage shutdown): 0.6 mA
  • Default Disengage Thresholds: 10.5V (12V system) or 21V (24V system)
  • Default Engage Thresholds: 12V (12V system) or 24V (24V system)

Programming & Timing

  • Setup Method: Integrated 7-segment LED display for easy voltage setting selection.
  • Alarm Output Delay: 12 seconds
  • Load Disconnect Delay: 90 seconds (Note: disconnect is immediate if triggered by a VE.Bus BMS).
  • Load Reconnect Delay: 30 seconds
  • Maximum Load on Alarm Output: 50 mA (short circuit proof open collector output to negative rail).

Key Features & Protections

  • Li-ion Mode: Includes a special setting to allow control via a VE.Bus BMS; can also function as a charge interrupter between a charger and a Li-ion battery.
  • Over-Voltage Protection: Protects sensitive loads by disconnecting when DC voltage exceeds 16V (for 12V systems) or 32V (for 24V systems).
  • Ignition Proof: Uses MOSFET switches instead of relays, eliminating sparks.
  • Ultra-Low Self-Consumption: Specifically optimized for Li-ion batteries after a low-voltage shutdown.
  • Delayed Disconnect: Prevents nuisance tripping; if voltage recovers within the 90-second window (e.g., when an engine is started), the load will not disconnect.

Mechanical & Environmental

  • Dimensions (H x W x D): 40 x 48 x 106 mm (1.6 x 1.9 x 4.2 inches)
  • Weight: 0.2 kg (0.5 lbs)
  • Connection Type: M6 Terminal bolts
  • Mounting Torque: 5 Nm
  • IP Rating: Electronics: IP67 (potted) / Connections: IP00
  • Operating Temperature Range: Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
  • Included Accessory: Connector with preassembled DC minus cable.

Note: The BatteryProtect is designed for uni-directional current flow and is not intended for reverse currents from charging sources.
