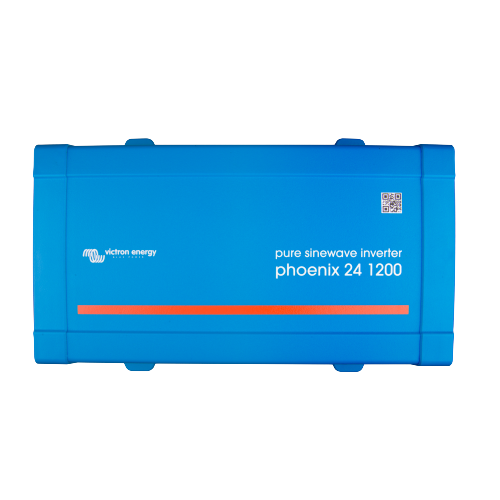

Victron Phoenix Inverter 24/1200 230V VE.Direct UK

Technical Specifications

Combined for SKUs: PIN242121400

A COutlet Socket: UK (BS 1363)

AC Output Voltage: 230 V

Automotive Directive: ECE R10-4

Battery Charged Detection Voltage: 28 V

Battery Voltage Nominal: 24 V

Colour: Blue (RAL 5012)

Communication Port: VE.Direct

Continuous Power (VA, 25°C): 1,200 VA

Continuous Power (W, 25°C): 1,000 W

Continuous Power (W, 40°C): 850 W

D CLow Restart Alarm: 21.8 V

D CLow Shut Down: 18.6 V

DC Input Voltage Range: [18.4, 34] V

Depth: 327 mm

Dynamic Low DCShutdown: Yes

E MC: EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Eco Mode Retry Interval: 2.5 s

Eco Mode Stop Start Power Setting: Adjustable

Frequency: 50 Hz

Fully Programable: Yes

Height: 117 mm

Material: Steel chassis and plastic cover

Max Efficiency: 91 %

Max Humidity: 95 %

Peak Power Rating: 2,200 W

Power Deration: 1.25 %

Protection Category: IP21

Protections: Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload

Remote On Off Terminal: Yes

Remote Terminal: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 62109-1

Weight: 7.4 kg

Width: 232 mm

Zero Load Power: 8 W

Zero Load Power Eco Mode: 1.5 W

Source: Victron
