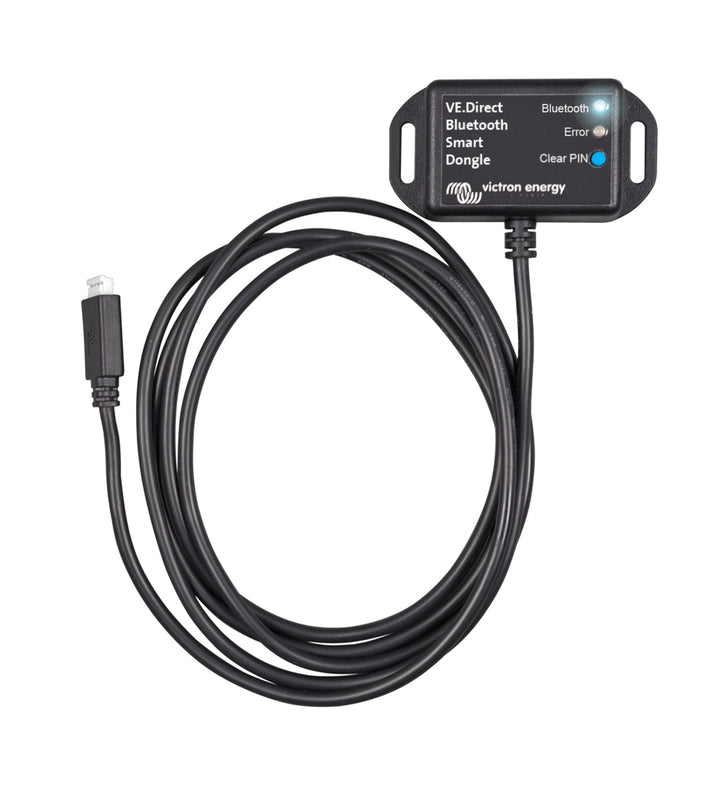

Victron VE.Direct To Bluetooth Smart Dongle - ASS030536011

Using the VE.Direct to Bluetooth Smart dongle you can display your BMV or MPPT information on iOS and Android devices, using the VictronConnect App. View information wirelessly such as battery status and solar panel power, plus other useful data.

VE.Direct Port to Bluetooth connection. Can be used with both Android and iOS devices. Monitor and programme via Bluetooth. Dimensions: 68 x 20 x 20.5mm Weight: 0.11kg
£48.00 £36.39 SAVE £11.61
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ASS030536011
AVAILABLE IN 7-10 DAYS
Product Details

The Victron VE.Direct To Bluetooth Smart Dongle is an essential accessory for enhancing the functionality of your Victron energy system. By connecting to the VE.Direct port of compatible devices such as the BMV-70x series battery monitors, Phoenix Inverters, and BlueSolar MPPTs, this dongle enables wireless monitoring via Bluetooth.

Once connected, you can use the VictronConnect app on your iOS or Android device to view real-time data, including battery status, solar panel power, and other vital information. The Instant Readout feature allows you to see key data without requiring a direct connection to the product, providing at-a-glance diagnostics and visual notifications of warnings, alarms, and errors.

Installation is straightforward, with the dongle connecting directly to the VE.Direct port, ensuring a secure and reliable connection. This accessory is ideal for users seeking to monitor their Victron devices remotely, enhancing convenience and system management.

Seamless Integration for Non-Smart Products:
Connect the dongle to Victron products lacking built-in smart functionality, enabling real-time monitoring through the VictronConnect app. Set programmable alarms and cut-offs effortlessly for optimal system setup.

Universal Compatibility:
The dongle reads data from all products with a VE.Direct port and is commonly used with the 250W-1200W Phoenix inverter range, providing smart capabilities to products that don't inherently possess them.

Live Status Updates and Configuration:
Utilize the VE.Direct to Bluetooth Smart Dongle to access live status information, view historical values, and configure product settings conveniently via the VictronConnect app.

Smart System Integration:
In a fully smart system, pair the dongle with products like the Victron Phoenix inverter to monitor power usage, loads, and set up alarms and cut-offs using the VictronConnect app, ensuring a fully optimized and responsive system.

Product Specifications

Technical Specifications

  • SKU: ASS030536011
  • Current Draw (Not Connected): 1mA
  • Current Draw (Connected): 2.5mA
  • Cable Length: 1.5m (Note: This cable cannot be extended)
  • Interface: VE.Direct to Bluetooth Low Energy (Smart)
  • Status Indicators: Dual LED (Blue for Bluetooth status, Red for Errors)
  • Physical Controls: Integrated "Clear PIN code" button

Compatible Victron Products: The dongle is compatible with almost all products featuring a built-in VE.Direct port, including:

  • Battery Monitors: BMV-700 and BMV-702 series.
  • Inverters: Phoenix Inverters with VE.Direct ports.
  • Solar Controllers: BlueSolar MPPT Solar Charge Controllers.
  • Note: This dongle is NOT compatible with GX devices or GlobalLink devices.

Physical & Installation Data

  • Dimensions: 67.3mm (L) x 35mm (W) x 20.5mm (D)
  • Mounting Hole Centers: 57.8mm
  • Installation: Direct plug-and-play into the VE.Direct port of the powered Victron device.
  • Wireless Range: Up to approximately 20 meters in open space.

Warranty & Compliance

  • Warranty: 5-year standard limited warranty covering defects in materials and workmanship.
  • Quality Standards: Manufactured in accordance with ISO9001 standards.
