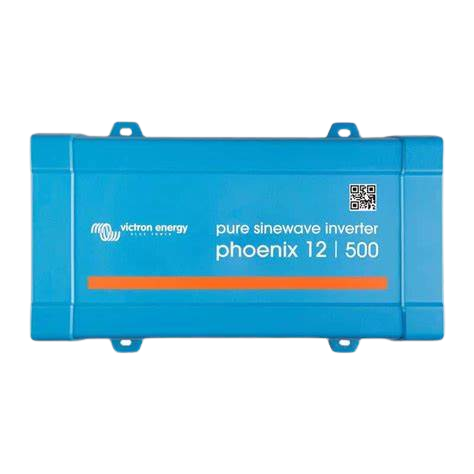

Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct

The Victron Phoenix Inverter 12/500 230V VE.Direct UK delivers reliable 230 V AC output from a 12 V DC battery source, featuring a VE.Direct communication port and UK-plug configuration ideal for vehicles, boats or off-grid installations.

Max constant power 500VA (400W). Pure sine wave inverter. For 12V systems. Quiet, efficient and reliable. Dimensions: 86 x 172 x 275mm Weight: 3.9kg
£187.20 £136.40 SAVE £50.80
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN121501400
IN STOCK
Receive between -

People Also Bought:

Product Details

Compact, robust and smart, the Victron Phoenix Inverter 12/500 230 V VE.Direct UK is engineered to convert your 12 V battery power into clean 230 V AC mains supply, making it perfect for mobile, marine and off-grid applications. With impressive start-up capacity to handle demanding loads such as power tools, LED drivers and lighting systems, this inverter offers real flexibility.

      The Victron 500VA Energy Phoenix inverter is a reliable and efficient power solution designed for off-grid applications, including campervans, motorhomes, RVs, and boats. Converting 12V DC power from your leisure batteries into 230V AC power, this 500VA pure sine wave inverter ensures a clean and stable power supply for a variety of domestic appliances.

      Key Features:

      Power Output:
      Provides a continuous power output of 500VA, making it suitable for off-grid scenarios.
      Ideal for running appliances such as laptops, camera chargers, and hair straighteners.

      Smart Connectivity (with VE.Direct Smart Dongle):
      Enhance monitoring and control by pairing with the VE.Direct smart dongle.
      Utilize the Victron Connect app to monitor inverter performance and configure settings.
      Set programmable alarms and cut-offs for low and high voltages.

      Use Case:
      Suitable for off-grid electrical systems with a total wattage of 500VA or less.
      Perfect for applications in campervans, motorhomes, RVs, and boats.

      Pure Sine Wave Inverter:
      Replicates the 230V AC waveform found in household mains power.
      Compatible with a wide range of 230V appliances.
      Prevents potential damage or operational issues associated with modified sine wave inverters.

      Reliability:
      Victron inverters are short circuit-proof and protected against overheating, ensuring durability.
      High start-up power capability for loads like power converters, LED lamps, halogen lamps, or electric tools.

      ECO Mode:
      Reduces power consumption by switching to standby when the load decreases below a preset value.
      Reactivates when the load exceeds the preset level, maintaining efficiency.

      Remote On/Off:
      Connect a remote on/off switch to control the inverter from a convenient location.
      Provides flexibility in managing the inverter's operation.

      Installation:
      Comes with a UK 3-pin plug for easy installation.
      MC4 connection points simplify wiring for solar panels.

      Proven Performance:
      Backed by Victron's reputation for reliability and performance.
      Short circuit-proof and protected against environmental factors

      Product Specifications

      Inverter Specifications

      • Nominal Battery Voltage: 12 V
      • Continuous Power at 25°C: 500 VA
      • Peak Power: 900 W
      • Output AC Voltage / Frequency: 230 VAC or 120 VAC +/- 3% (50 Hz or 60 Hz +/- 0.1%)
      • Input Voltage Range: 9.2 – 17 V
      • Maximum Efficiency: 90%
      • Zero-load Power: 6 W
      • Default Zero-load Power in ECO Mode: 1 W (default retry interval: 2.5 s)

      Configurable Features & Monitoring

      • VE.Direct Communication Port: Connects to a computer (via VE.Direct to USB cable) or smartphones/tablets (via VE.Direct Bluetooth Smart dongle) for full configuration and monitoring.
      • Fully Configurable Parameters:
         - Low battery voltage alarm trip and reset levels.
        - Low battery voltage cut-off and restart levels.
        - Dynamic cut-off: Load-dependent cut-off level.
        - Output voltage: 210 – 245 V.
        - Frequency: 50 Hz or 60 Hz.
        - ECO mode on/off and ECO mode sense level.
      • Monitoring Capabilities: Track in- and output voltage, % load, and active alarms.
      • ECO Mode: Automatically switches the inverter to standby when the load decreases below a preset value (minimum 15W) to conserve energy.
      • Remote On/Off: Features a two-pole connector for a remote switch or battery-plus connection.

      Mechanical Specifications

      • Dimensions (H x W x D): 86 x 172 x 275 mm
      • Weight: 3.9 kg (8.5 lbs)
      • Enclosure Material & Colour: Steel chassis and plastic cover (Blue RAL 5012)
      • Protection Category: IP21
      • Battery Connection: Screw terminals
      • Maximum Cable Cross-section: 10 mm² (AWG8)
      • Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), or AU/NZ (AS/NZS 3112).

      Environmental & Protection

      • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
      • Humidity: Max 95% non-condensing
      • Integrated Electronic Protection:
         - Output short circuit
        - Overload
        - Battery voltage too high / too low
        - Temperature too high
        - DC ripple too high

      Standards & Certifications

      • Safety: EN-IEC 60335-1 / EN-IEC 62109-1
      • EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
      • Automotive Directive: ECE R10-4

      Shipping & Collection

      Tracked Delivery (Currently 1-3 business days):

      • Free over £250.
      • £5.99 for orders under £250.
      • £5.99 for orders under £50.

      Next Business Day Delivery:

      • £15 Flat Rate.

      Collection:

      • Free to collect from our warehouse.

      Pre-Order:

      • 5-10 Business Days delivery unless otherwise stated.

      Shipping Policy

      Datasheets
      Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct - Manual
      Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct - Data Sheet
      Ask The AI About This Product
      System capability

      What Can I Power With This?

      This kit includes a 500VA inverter with an estimated continuous output of ~400W. Ideal for smaller essential loads such as charging, lighting, entertainment and low-draw devices.

      Inverter size 500VA
      Continuous output ~400W

      Typical appliances you can run

      • Phone / tablet chargers (up to 4)
      • Laptop (50–90W)
      • Wi-Fi router / 4G router
      • LED lighting (several circuits)
      • Small TV (up to 32" LED, around 20–40W)
      • CPAP machine (no heat)
      • Radio / DAB
      • USB hub / small fan
