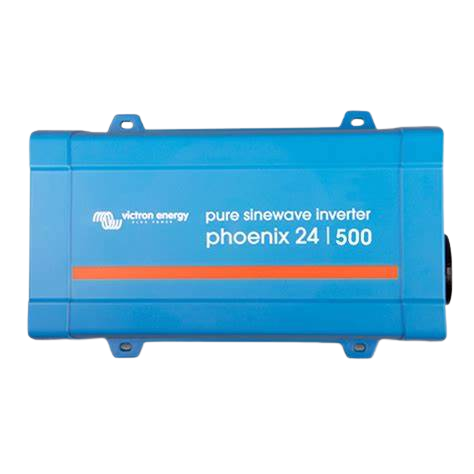

Victron Phoenix Inverter 24/500 230V VE.Direct UK

The Victron Phoenix Inverter 24/500 230V VE.Direct UK is a compact, high-efficiency inverter designed to convert 24V DC to 230V AC. With a continuous output of 500VA, it delivers pure sine wave power suitable for sensitive electronics. The built-in VE.Direct port allows for easy monitoring and configuration via VictronConnect.

Reliable Power Conversion: Delivers stable and clean AC power for sensitive devices. Remote Monitoring: Easily monitor and configure settings via VictronConnect. Space-Saving Design: Compact size fits into various installation spaces. Direct UK Compatibility: Comes with a UK plug for straightforward integration. Versatile Applications: Ideal for off-grid, marine, and mobile power setups. Dimensions: 86 x 172 x 275mm Weight: 4.1kg
£187.20 £157.24 SAVE £29.96
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN241501400
IN STOCK
Receive between -

People Also Bought:

Product Details

The Victron Phoenix Inverter 24/500 230V VE.Direct UK is engineered for reliable and efficient power conversion in 24V DC systems. Delivering a continuous output of 500VA (approximately 400W), this inverter provides pure sine wave AC power, making it ideal for running sensitive equipment like laptops, TVs, and medical devices.

Key features include:

  • Pure Sine Wave Output: Ensures clean and stable power for sensitive electronics.
  • VE.Direct Connectivity: Enables remote monitoring and configuration via VictronConnect.
  • Compact Design: Space-saving dimensions for easy installation in various applications.
  • UK Plug: Direct compatibility with UK mains sockets for convenience.
  • Wide Application Range: Suitable for off-grid, marine, and mobile power systems.
Product Specifications

Performance & Electrical

  • Cont. Power at 25°C: 500 VA
  • Peak Power: 900 W
  • Output AC Voltage: 230 VAC (Adjustable 210 – 245V)
  • Output Frequency: 50 Hz or 60 Hz (Adjustable +/- 0.1%)
  • Maximum Efficiency: 90%
  • Zero-Load Power: 6.5 W
  • Zero-Load Power in ECO Mode: 1.5 W (Default 2.5s retry interval)

Battery & DC Input

  • Nominal Battery Voltage: 24 V
  • Input Voltage Range: 18.4 – 34.0 VDC
  • Low Battery Shut Down: 18.6 V (Fully adjustable)
  • Low Battery Restart & Alarm: 21.8 V (Fully adjustable)
  • Battery Charged Detect: 28.0 V (Fully adjustable)
  • DC Connection: Screw terminals (Maximum cable cross-section: 10mm² / AWG8)

Features & Connectivity

  • VE.Direct Communication Port: Connect to a computer (requires VE.Direct to USB cable) or smartphones/tablets (requires VE.Direct Bluetooth Smart dongle) for monitoring and configuration.
  • ECO Mode: Automatically switches to standby when the load decreases below 15W to conserve battery energy.
  • Remote On/Off: Integrated two-pole connector for remote switch operation.
  • Programmable Settings: Configurable low battery alarms, cut-off levels, output voltage, frequency, and ECO mode sense levels.
  • Monitoring Capabilities: Real-time tracking of input/output voltage, % load, and system alarms.

Protections & Reliability

  • Built-in Protection: Output short circuit, overload, battery voltage too high/low, high temperature, and high DC ripple.
  • Reliable Topology: Full bridge plus toroidal transformer for long-term durability.
  • Diagnostics: Visual LED indicators for power, alarms, and ECO mode status.

Mechanical Specifications

  • Dimensions (H x W x D): 86 x 172 x 275 mm
  • Weight: 3.9 kg
  • Enclosure Material: Steel chassis with plastic cover
  • Colour: Blue (RAL 5012)
  • Protection Category: IP21
  • AC Outlet: UK (BS 1363)
  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating above 40°C)
  • Humidity: Max 95% (Non-condensing)

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 62109-1
  • EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Automotive Directive: ECE R10-4

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 24/500 230V VE.Direct UK - Manual
Victron Phoenix Inverter 24/500 230V VE.Direct UK - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 500VA inverter with an estimated continuous output of ~400W. Ideal for smaller essential loads such as charging, lighting, entertainment and low-draw devices.

Inverter size 500VA
Continuous output ~400W

Typical appliances you can run

  • Phone / tablet chargers (up to 4)
  • Laptop (50–90W)
  • Wi-Fi router / 4G router
  • LED lighting (several circuits)
  • Small TV (up to 32" LED, around 20–40W)
  • CPAP machine (no heat)
  • Radio / DAB
  • USB hub / small fan
