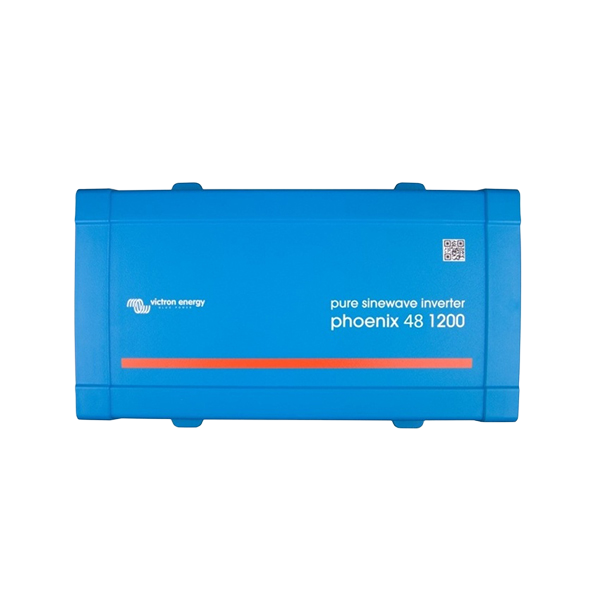

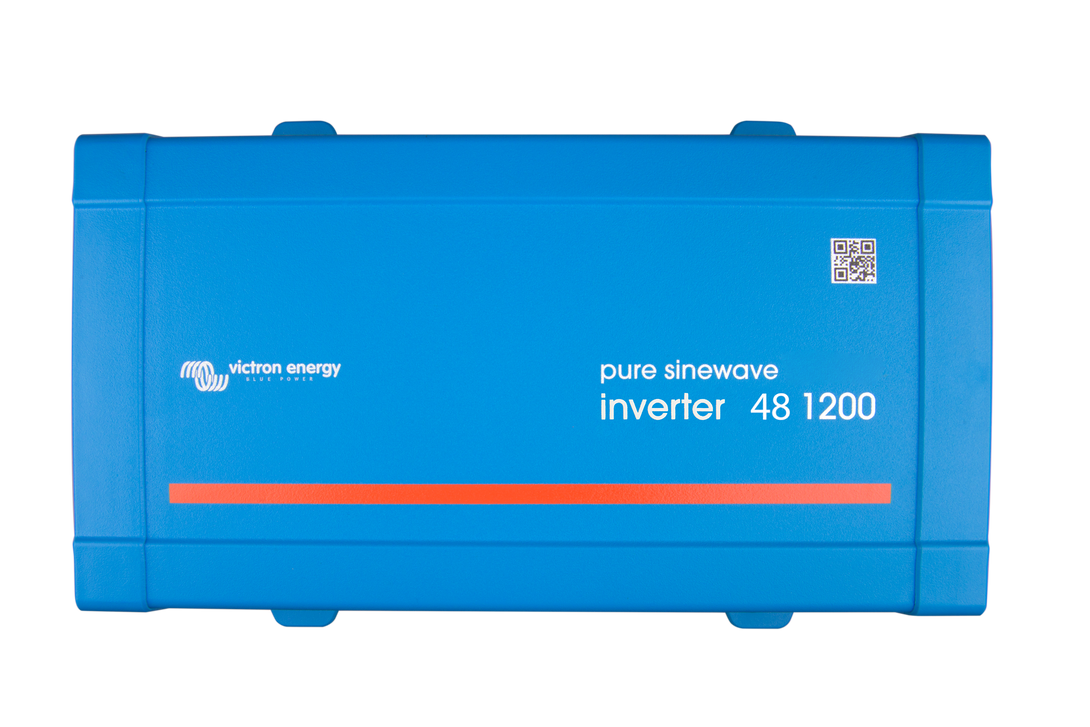

Victron Phoenix Inverter 48/1200 230V VE.Direct UK

Keep your devices powered wherever you go with the Victron Phoenix Inverter 48/1200 230V VE.Direct UK. This compact inverter converts 48V DC into clean 230V AC power, delivering up to 1200VA for off-grid, backup, and mobile applications.

Pure Sine Wave: Safe for sensitive electronics. Compact & Lightweight: Fits easily in tight spaces. Remote Monitoring: VE.Direct port works with VictronConnect app High Surge Capacity: Handles devices with high start-up currents. Durable Build: Reliable performance in demanding conditions. Dimensions: 117 x 232 x 327mm Weight: 6.9kg
£531.60 £465.15 SAVE £66.45
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN482120400
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

The Victron Phoenix Inverter 48/1200 230V VE.Direct UK gives you reliable, clean AC power from a 48V DC battery system. Perfect for off-grid solar setups, RVs, boats, or backup systems, it delivers 1200VA (1000W) continuous output while keeping your sensitive electronics safe thanks to its pure sine wave design.

Thanks to high surge capacity, it can handle devices with high inrush currents, such as power tools or pumps, without tripping. Its compact and lightweight design makes it easy to install in confined spaces, while the VE.Direct communication port allows you to monitor and configure the inverter remotely using the VictronConnect app.

Built for reliability, the Phoenix Inverter is durable, efficient, and designed to last, making it a trusted choice for a wide range of off-grid and mobile applications.

Product Specifications

Performance & Electrical

  • Cont. Power at 25°C: 1200 VA
  • Peak Power: 2200 W
  • Output AC Voltage: 230 VAC (Adjustable 210 – 245V)
  • Output Frequency: 50 Hz or 60 Hz (Adjustable +/- 0.1%)
  • Maximum Efficiency: 92%
  • Zero-Load Power: 12 W
  • Zero-Load Power in ECO Mode: 3.0 W (Default 2.5s retry interval)

Battery & DC Input

  • Nominal Battery Voltage: 48 V
  • Input Voltage Range: 36.8 – 62.0 VDC
  • Low Battery Shut Down: 37.2 V (Fully adjustable)
  • Low Battery Restart & Alarm: 43.6 V (Fully adjustable)
  • Battery Charged Detect: 56.0 V (Fully adjustable)

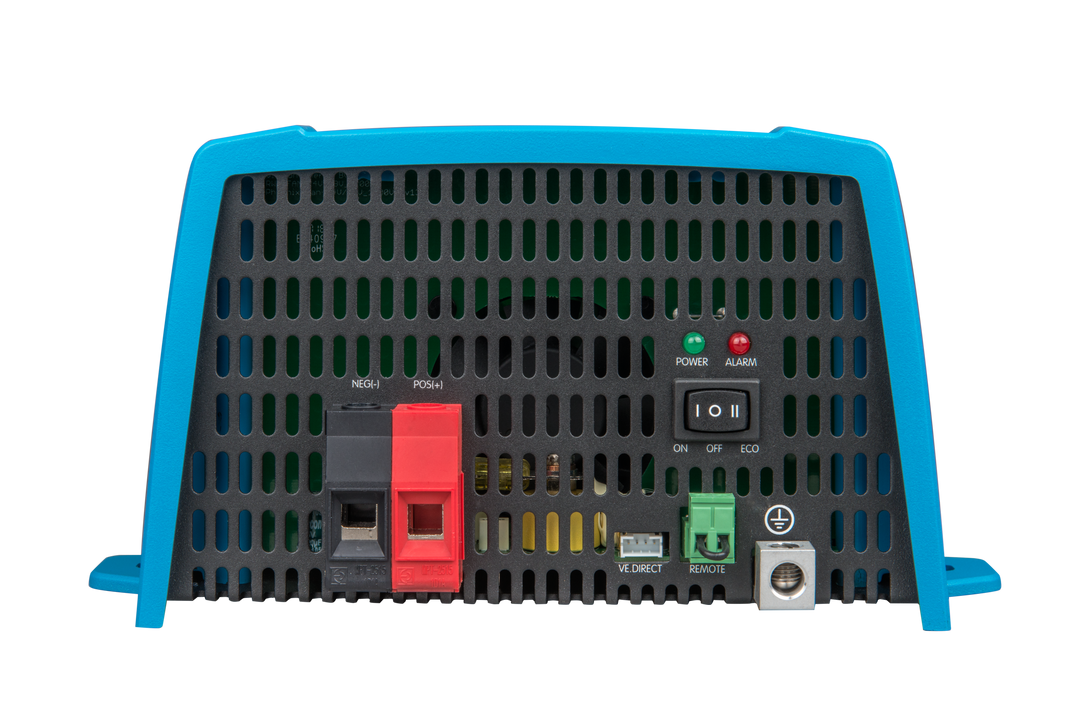

  • DC Connection: Screw terminals (Maximum cable cross-section: 25mm² / AWG4)

Features & Connectivity

  • VE.Direct Communication Port: Allows connection to a computer (via VE.Direct to USB cable) or smartphones and tablets (via VE.Direct Bluetooth Smart dongle) for full configuration and monitoring.
  • ECO Mode: Automatically switches the inverter to standby when the load drops below 15W to minimize battery drain.
  • Remote On/Off: Features a two-pole connector for easy integration of a remote power switch.
  • Configurable Settings: Includes adjustable low battery alarms, cut-off and restart levels, output voltage, frequency, and ECO mode sense levels.
  • Monitoring: Track input/output voltage, load percentage, and active system alarms in real-time.

Protections & Reliability

  • Integrated Protection: Output short circuit, overload, battery voltage too high/low, over-temperature, and high DC ripple.
  • Proven Topology: Full bridge plus toroidal transformer design for maximum durability and thermal stability.
  • High Start-up Power: Specifically designed to start difficult loads like LED lamps and electric tools.

Mechanical Specifications

  • Dimensions (H x W x d): 117 x 232 x 327 mm
  • Weight: 7.4 kg
  • Enclosure Material: Steel chassis with plastic cover
  • Colour: Blue (RAL 5012)
  • Protection Category: IP21
  • AC Outlet: UK (BS 1363)
  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
  • Humidity: Max 95% (Non-condensing)

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 62109-1
  • EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Automotive Directive: ECE R10-4

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 48/1200 230V VE.Direct UK - Manual
Victron Phoenix Inverter 48/1200 230V VE.Direct UK - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1200VA inverter with an estimated continuous output of ~1000W. Well suited to more demanding off-grid living, including refrigeration and selected heating appliances.

Inverter size 1200VA
Continuous output ~1000W

Typical appliances you can run

  • Compressor fridge / freezer (all sizes)
  • Induction hob on a low power setting (around 800–1000W)
  • Small slow cooker (120–200W)
  • Electric blanket (60–100W)
  • Small inverter air-con (for example Dometic, around 650W running)
  • Water pump / pressure pump (300–600W)
  • CPAP with heated humidifier (around 100W)
  • Filter coffee machine (around 800–1000W)
