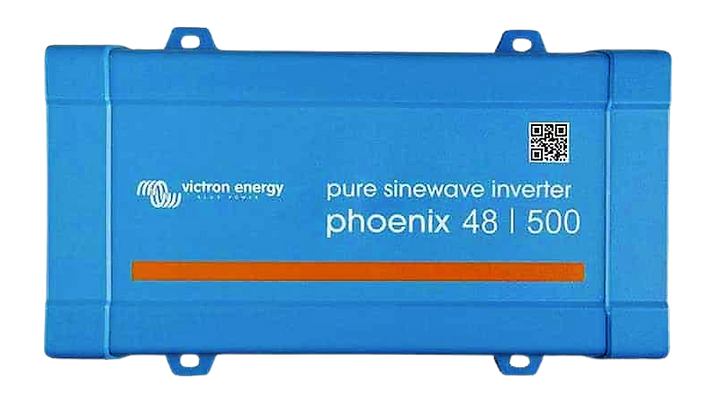

Victron Phoenix Inverter 48/500 230V VE.Direct UK

The Victron Phoenix Inverter 48/500 230V VE.Direct UK is a compact and efficient pure sinewave inverter designed to provide high-quality 230V AC power from a 48V DC source. With a 500VA capacity and VE.Direct port for remote monitoring, it's ideal for off-grid systems, backup power, and mobile applications.

Pure Sinewave Output: Delivers clean, high-quality 230V AC power suitable for sensitive electronics. VE.Direct Connectivity: Allows remote monitoring and configuration via the VictronConnect app. Compact and Lightweight: Space-saving design for easy installation in confined spaces. BS 1363 UK Plug: Comes with a UK plug for direct connection to standard outlets. Reliable Victron Quality: Built to last with robust components and rigorous testing. Dimensions: 86 x 172 x 275mm Weight: 3.9 kg
£243.60 £204.62 SAVE £38.98
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN485010400
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

The Victron Phoenix Inverter 48/500 230V VE.Direct is engineered to provide efficient and reliable 230V AC power from a 48V DC source. Its pure sinewave output ensures compatibility with a wide range of devices, including sensitive electronics like laptops, medical equipment, and audio systems.

Key Features:

  • Pure Sinewave Output: Produces clean and stable 230V AC power, ensuring the safe operation of sensitive equipment.
  • VE.Direct Connectivity: Equipped with a VE.Direct port, enabling remote monitoring and configuration through the VictronConnect app.
  • Compact and Lightweight Design: With dimensions of 86 x 172 x 275 mm and weighing 3.9 kg, this inverter is designed for easy installation in tight spaces.
  • BS 1363 UK Plug: Comes with a UK plug, allowing for direct connection to standard 230V outlets without the need for additional adapters.
  • Durable and Reliable: Built with high-quality components and subjected to rigorous testing to ensure long-term reliability and performance.
Product Specifications

Performance & Electrical

  • Continuous Power at 25°C: 500 VA
  • Peak Power: 900 W
  • Output AC Voltage: 230 VAC (Adjustable 210 – 245V)
  • Output Frequency: 50 Hz or 60 Hz (Adjustable +/- 0.1%)
  • Maximum Efficiency: 91%
  • Zero-Load Power: 9 W
  • Zero-Load Power in ECO Mode: 3.0 W (Default 2.5s retry interval)

Battery & DC Input

  • Nominal Battery Voltage: 48 V
  • Input Voltage Range: 36.8 – 62.0 VDC
  • Low Battery Shut Down: 37.2 V (Fully adjustable)
  • Low Battery Restart & Alarm: 43.6 V (Fully adjustable)
  • Battery Charged Detect: 56.0 V (Fully adjustable)
  • DC Connection: Screw terminals (Maximum cable cross-section: 10mm² / AWG8)

Features & Connectivity

  • VE.Direct Communication Port: Connect to a computer (requires VE.Direct to USB interface cable) or smartphones and tablets (requires VE.Direct Bluetooth Smart dongle) for monitoring and configuration.
  • ECO Mode: Automatically switches to standby when the load decreases below a preset value (minimum 15W) to conserve battery energy.
  • Remote On/Off: Integrated two-pole connector for remote switch operation.
  • Programmable Settings: Configurable low battery alarms, cut-off levels, output voltage, frequency, and ECO mode sense levels.
  • Monitoring Capabilities: Real-time tracking of input and output voltage, % load, and system alarms.

Protections & Reliability

  • Built-in Protection: Output short circuit, overload, battery voltage too high/low, high temperature, and high DC ripple.
  • Reliable Topology: Full bridge plus toroidal transformer design for long-term durability.
  • High Start-up Power: Specifically designed to start difficult loads like LED lamps and electric tools.

Mechanical Specifications

  • Dimensions (H x W x D): 86 x 172 x 275 mm
  • Weight: 3.9 kg
  • Enclosure Material: Steel chassis with plastic cover
  • Colour: Blue (RAL 5012)
  • Protection Category: IP21
  • AC Outlet: UK (BS 1363)
  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
  • Humidity: Max 95% (Non-condensing)

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 62109-1
  • EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Automotive Directive: ECE R10-4

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 48/500 230V VE.Direct UK - Manual
Victron Phoenix Inverter 48/500 230V VE.Direct UK - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 500VA inverter with an estimated continuous output of ~400W. Ideal for smaller essential loads such as charging, lighting, entertainment and low-draw devices.

Inverter size 500VA
Continuous output ~400W

Typical appliances you can run

  • Phone / tablet chargers (up to 4)
  • Laptop (50–90W)
  • Wi-Fi router / 4G router
  • LED lighting (several circuits)
  • Small TV (up to 32" LED, around 20–40W)
  • CPAP machine (no heat)
  • Radio / DAB
  • USB hub / small fan
