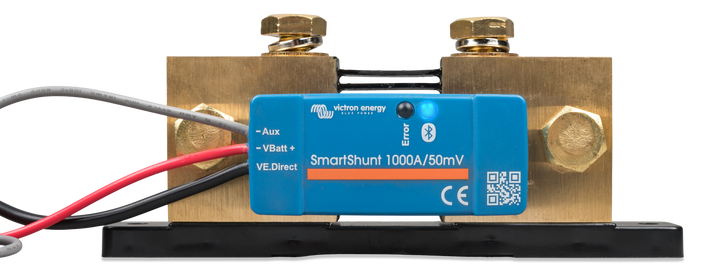

Victron SmartShunt 1000A/50mV IP65

£147.44
pay interest-free installments
Klarna
PayPal
IN STOCK

The Victron SmartShunt 1000A/50 mV IP65 is a water-resistant, all-in-one battery monitor (without display) that uses Bluetooth or VE.Direct to show battery data via VictronConnect or GX systems.

Bluetooth & VE.Direct Monitoring IP65 Water & Dust Resistance Integrated Shunt & Monitor Auxiliary Input Flexibility Historical & Real-Time Data Logging Dimensions: 68 x 168 x 75mm Weight: 0.4kg
Add to Wishlist
Arrives -

UK-wide delivery Free tracked delivery on orders over £250.

Next-day delivery UK-wide option at checkout. Delivery times apply from dispatch.

SKU: SHU065210050

Frequently Bought Together

Total price:£172.43
Product Details

The Victron SmartShunt 1000A/50 mV IP65 is part of Victron’s SmartShunt IP65 series, available in 300A, 500A, 1000A and 2000A variants.

It integrates the shunt and battery monitoring electronics into one compact, sealed unit that is dust-proof and splash resistant. The unit connects via Bluetooth to the VictronConnect app (or via VE.Direct cable to a GX device) to display real-time data such as state of charge, voltage, current, time to go, and historical trends.

Additionally, it features an auxiliary connection that can be used to monitor a second battery, midpoint voltage, or temperature sensor.

.
Product Specifications

Performance & Electrical Specifications

  • Supply Voltage Range: 6.5 – 70 VDC
  • Current Draw: < 1 mA
  • Input Voltage Range (Auxiliary Battery): 6.5 – 70 VDC
  • Battery Capacity Range: 1 – 9999 Ah
  • Operating Temperature Range: -40 to +50 °C (-40 to 120 °F)
  • Auxiliary Input: Configurable to measure a second battery (starter), temperature (optional sensor required), or midpoint deviation.

Resolution & Accuracy

  • Current Resolution: ± 0.01 A
  • Voltage Resolution: ± 0.01 V
  • Amp Hours Resolution: ± 0.1 Ah
  • State of Charge (0 – 100%): ± 0.1 %
  • Time to Go Resolution: ± 1 min
  • Current Measurement Accuracy: ± 0.4 %
  • Voltage Measurement Accuracy: ± 0.3 %
  • Current Offset: Less than 20 mA (for 1000A model)

Connectivity & Data Logging

  • Bluetooth Smart: Built-in for wireless connection to the VictronConnect app (range typically 10-15 meters).
  • VE.Direct Port: Enables wired connection to GX devices (such as Cerbo GX) or a PC.
  • Stored Trends: Tracks battery voltage, current, state of charge, and auxiliary input data for up to 46 days.

Mechanical Specifications

  • Dimensions (h x w x d): 68 x 168 x 75 mm
  • Shunt Connection Bolts: M10 (0.3937 inch)
  • Protection Category: IP65 (Water resistant)
  • Weight: (Consult package for specific shipping weight)

Included Accessories

  • Power Cables: Two 1.5 m cables with 1 A inline fuses for '+' connection and auxiliary battery/midpoint connection.
  • VE.Direct Cable: 1.5 m cable with a VE.Direct socket.

Standards & Compliance

  • Safety: EN 60335-1
  • Emission / Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
  • Automotive: EN 50498

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £4.99 for small packages (Under 0.8kg)
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £9.99 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron SmartShunt 1000A/50mV IP65 - Manual
Victron SmartShunt 1000A/50mV IP65 - Data Sheet
