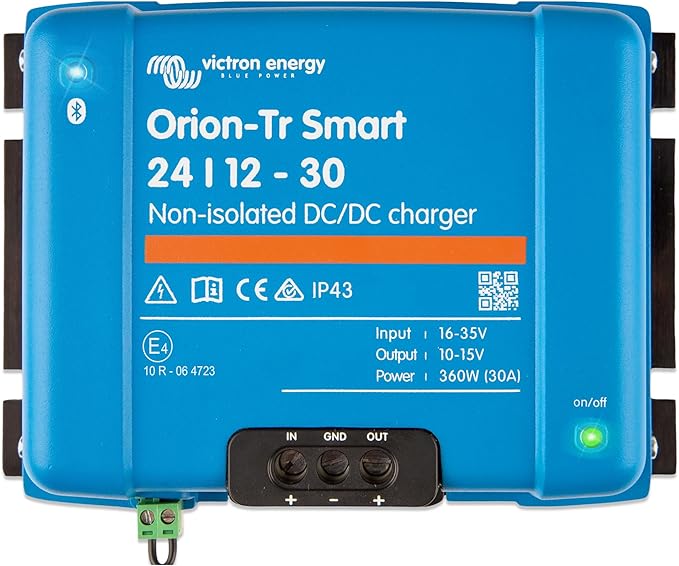

Victron Energy Orion-Tr Smart 24/12V 30A (360W) Non-isolated DC-DC Charger – ORI241236140

The Victron Orion-Tr Smart 24/12V 30A (360W) Non-Isolated DC-DC Charger is a compact, high-efficiency charger designed for dual battery systems in vehicles and boats.

High Efficiency Compact Design Built-in Bluetooth Adaptive 3-Stage Charging Engine Shutdown Detection Dimensions: 132.3 x 186 x 84.2 mm Weight: 0.9 kg
£149.50
This product is on clearance/reduced pricing.
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ORI241236140
IN STOCK
Receive between -

Frequently Bought Together

Total price:£549.10 £289.14
Product Details

The Victron Orion-Tr Smart 24/12V 30A (360W) Non-Isolated DC-DC Charger is engineered to provide reliable and efficient charging for 12V batteries from a 24V source. This charger is ideal for use in dual battery systems, such as those found in vehicles and boats, where the alternator and starter battery are used to charge the service battery.

Professional DC to DC Charger:
The Orion-Tr Smart DC-DC Charger is a professional charger that uses three stages to efficiently and safely charge your batteries.

Dual Battery Charging:

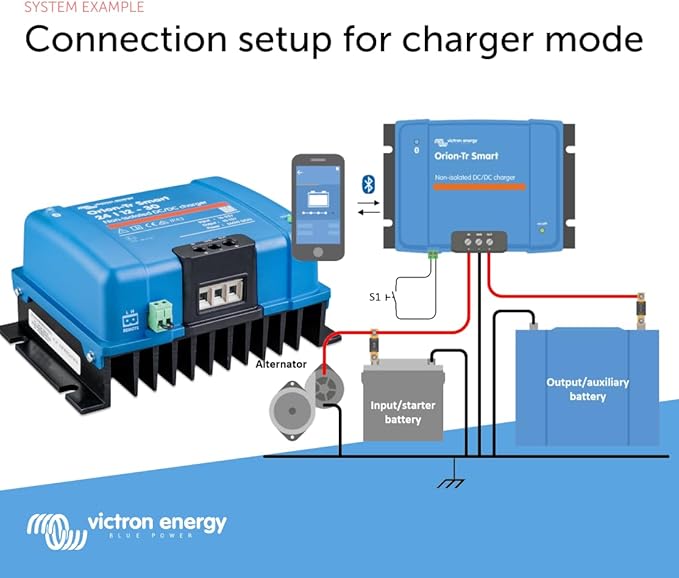

The Victron DC to DC charger is ideal for vehicles or boats where the alternator and start battery are used to charge the service battery.

Built-in Bluetooth:

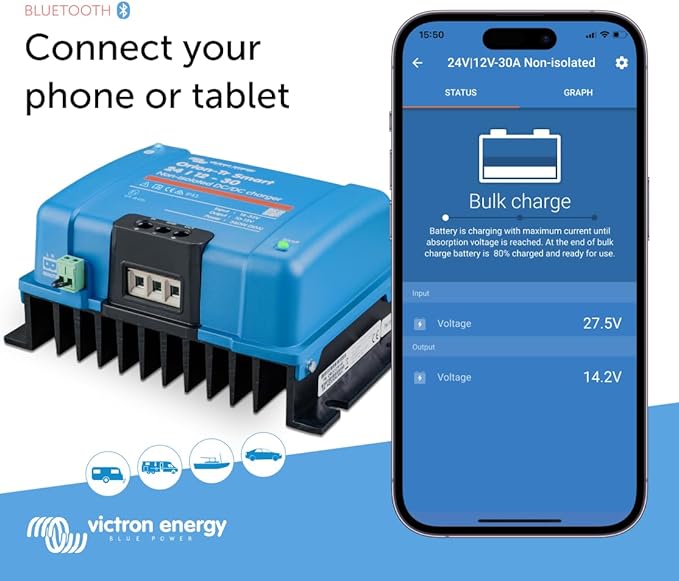

The DC to DC charger can be monitored and cotrolled with smartphone or tablet via Bluetooth and the VictronConnect App. This allows you to see the charger's status and make adjustments as needed.

Flexible Power Solution:
The DC DC charger is suitable for both lead acid and lithium batteries and unlimited multiple units can be connected in parallel to increase output power.

Easy to Install:
The screw terminals provide a convenient and easy installation process, eliminating the need for specialised tools.

Product Specifications

Performance & Electrical Specifications

  • Input Voltage Range: 16 – 35 V
  • Under Voltage Shut Down: 14 V
  • Under Voltage Restart: 15 V
  • Nominal Output Voltage: 12.2 V
  • Output Voltage Adjust Range: 10 – 15 V
  • Output Voltage Tolerance: +/- 0.2 V
  • Output Noise: 2 mV rms
  • Continuous Output Current (at 40°C): 30 A
  • Maximum Output Current (10s at nominal voltage -20%): 45 A
  • Short Circuit Output Current: 60 A
  • Continuous Output Power (at 25°C): 430 W
  • Continuous Output Power (at 40°C): 360 W
  • Efficiency: 88%
  • No Load Input Current: < 100 mA
  • Standby Current: Less than 1 mA

Smart Features & Configuration

  • Bluetooth Smart Enabled: Monitor, change settings, and update the charger wirelessly via the VictronConnect App using any Bluetooth-enabled smartphone or tablet.

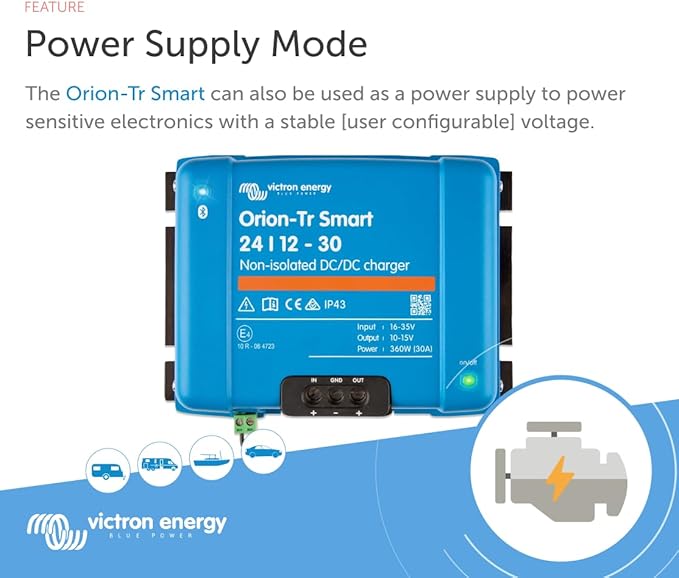

  • Fully Programmable: Configurable battery charge algorithm or fixed output voltage mode.

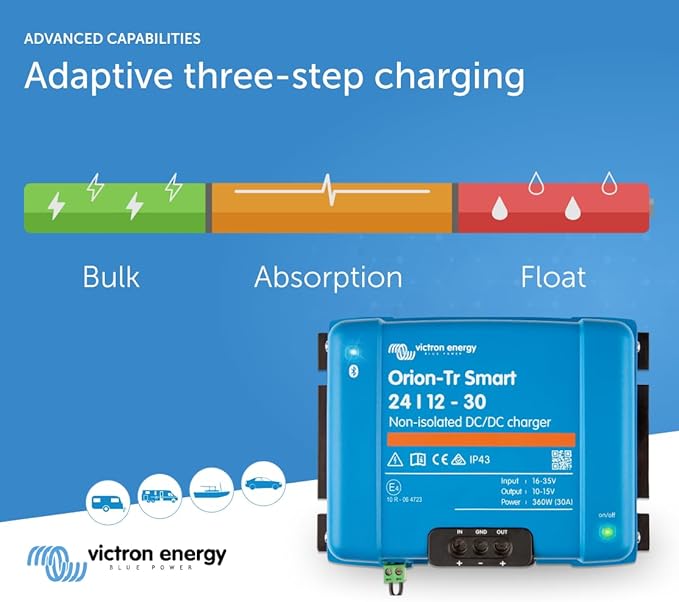

  • Adaptive 3-Stage Charge Algorithm: Features Bulk, Absorption, and Float stages. For lead-acid batteries, the absorption time is automatically adjusted based on the depth of discharge. For lithium batteries, the absorption time is fixed (default 2 hours).
  • Smart Alternator Compatibility: Includes an integrated engine running detection mechanism to ensure the charger only operates when the engine is running, protecting the starter battery.
  • Remote On/Off: Features a two-pole connector for a remote switch or relay contact.

Protection & Environmental

  • High Temperature Protection: The output current will automatically reduce at high ambient temperatures (derating 3% per °C above 40 °C).
  • Short-Circuit Proof: The unit is protected against output short circuits.
  • Parallel Operation: An unlimited number of units can be connected in parallel to increase output current.
  • Operating Temperature Range: -20 to +55 °C
  • Humidity: Max 95% (non-condensing)
  • Protection Category: IP43 (electronic components), IP22 (connection area)

Mechanical Specifications

  • DC Connection: Screw terminals
  • Maximum Cable Cross-Section: 16 mm² (AWG6)

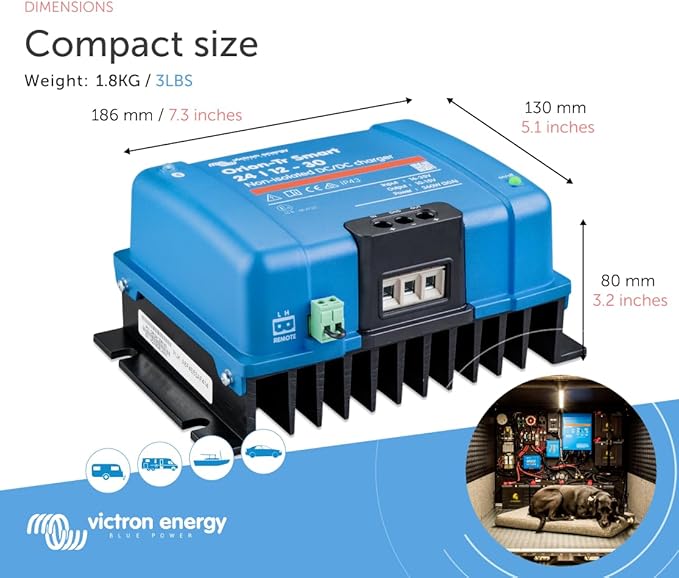

  • Dimensions (h x w x d): 130 x 186 x 80 mm
  • Unit Weight: 1.6 kg

Standards & Compliance

  • Safety: EN 60950
  • Emission: EN 61000-6-3, EN 55014-1
  • Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
  • Automotive Directive: ECE R10-5
