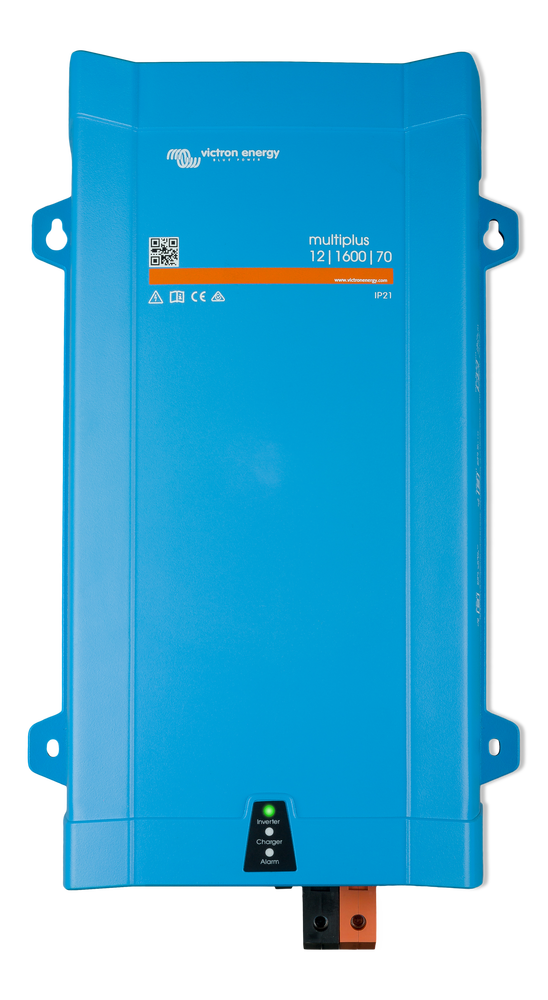

Victron MultiPlus 12/1600/70-16 230V VE.Bus Inverter/Charger front view
View of Victron MultiPlus 12/1600/70-16 showing ventilation and connectors
Terminals of Victron MultiPlus 12/1600/70-16 VE.Bus showing communication ports
Fast Delivery
Expert Support

Victron MultiPlus 1600VA 12V Inverter/Charger

The Victron MultiPlus 12/1600/70-16 230V VE.Bus Inverter/Charger combines a true sine wave inverter, adaptive battery charger, and high-speed AC transfer switch in a compact unit, ensuring reliable power for off-grid and mobile applications.

True Sine Wave Output: Provides clean and stable power, ideal for sensitive electronics and appliances. Adaptive Charging: Extends battery life with a four-stage charging algorithm tailored to your battery type. Seamless Power Transfer: High-speed AC transfer switch ensures uninterrupted power supply in less than 20 milliseconds. PowerAssist Technology: Prevents overload of limited AC sources by intelligently managing power distribution. Remote Monitoring: Easily monitor and control your system via the Victron VRM app and integrate with other Victron devices for expanded capabilities. Dimensions: 470 x 265 x 120mm Weight: 10.2kg
£973.20 £518.61 SAVE £454.59
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP122160000
IN STOCK
Receive between -
Product Details

The Victron MultiPlus 12/1600/70-16 230V VE.Bus Inverter/Charger is a versatile and compact solution for off-grid and mobile power systems. Combining a true sine wave inverter, a sophisticated battery charger with adaptive charging technology, and a high-speed AC transfer switch, it ensures reliable and efficient power conversion and management.

Key Features:

  • Powerful Inverter: Delivers 1600 VA of continuous power with true sine wave output, making it suitable for sensitive electronics and appliances.

  • Advanced Battery Charger: Features adaptive charging with a four-stage algorithm (bulk, absorption, float, and storage) to optimise battery performance and longevity.

  • High-Speed AC Transfer Switch: Ensures uninterrupted power supply by switching between shore power, generator, and inverter modes in less than 20 milliseconds.

  • PowerAssist Technology: Prevents overload of limited AC sources by dynamically adjusting the inverter's output and charging current.

  • VE.Bus Communication: Allows for remote monitoring and control via Victron's VRM app and integration with other Victron devices for system expansion.

Ideal for marine, RV, and off-grid applications, the MultiPlus 12/1600/70-16 offers seamless integration and scalability, providing a reliable power solution wherever you need it.

Product Specifications

Performance & Electrical Specifications (Inverter)

  • Nominal Battery Voltage: 12 V
  • Input Voltage Range: 9.5 – 17 V
  • Continuous Output Power at 25°C: 1600 VA
  • Continuous Output Power at 25°C: 1300 W
  • Continuous Output Power at 40°C: 1100 W
  • Continuous Output Power at 65°C: 800 W
  • Peak Power: 2800 W
  • Maximum Efficiency: 93%
  • Zero-load Power: 10 W
  • Zero-load Power in Search Mode: 3 W
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

  • AC Input Voltage Range: 187 – 265 VAC
  • AC Input Frequency: 45 – 65 Hz
  • Charge Voltage 'Absorption': 14.4 V
  • Charge Voltage 'Float': 13.8 V
  • Storage Mode: 13.2 V
  • Charge Current House Battery: 70 A
  • Charge Current Starter Battery: 1 A (12V and 24V models only)
  • Battery Temperature Sensor: Yes

Key Features & System Integration

  • PowerControl & PowerAssist: Yes
  • Transfer Switch: 16 A
  • Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output.
  • Programmable Relay: Features a relay that can be set for general alarms, DC under-voltage, or generator start/stop functions.
  • VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
  • Remote On-Off: Yes (On/off/charger only)
  • DIP Switches: Yes (For setting battery charge voltage and search mode)
  • Internal DC Fuse: 200 A

Mechanical Specifications

  • Enclosure Material & Colour: Steel/ABS (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: 50 / 35 mm²
  • 230V AC Connection: G-ST18i connector
  • Weight: 10.2 kg
  • Dimensions (h x w x d): 470 x 265 x 120 mm
  • Operating Temperature Range: -40 to +65°C (fan assisted cooling)
  • Humidity: Max 95% (non-condensing)

Standards & Protection

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
  • Automotive Directive: ECE R10-5
  • Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron MultiPlus 1600VA 12V Inverter/Charger - Manual
Victron MultiPlus 1600VA 12V Inverter/Charger - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1600VA inverter with an estimated continuous output of ~1300W. A comfortable all-rounder for serious motorhome and off-grid base loads.

Inverter size 1600VA
Continuous output ~1300W

Typical appliances you can run

  • Induction hob on a medium setting (around 1000–1300W)
  • Larger inverter air-con (around 900–1200W running)
  • Vacuum cleaner (modern, around 700–900W)
  • Heated clothes airer (around 300W)
  • Dishwasher, heat-pump type (around 900W)
  • Larger dehumidifier (around 400–700W)
  • Bread maker (around 450–800W)
  • Small microwave (around 700–900W)
A 700–900W microwave generally fits well here with sensible headroom, depending on startup demand and the wider system design.
