Victron 230 Watt Solar Panel, Victron PWM Solar Charge Controller, Cable, Mounting & Gland. KIT12
Nexy Day Delivery Available! Ends in:
(Order before midday on a business day)
Description:
This is a powerful solar panel kit for motorhomes or small off-grid needs and is good for general needs. This solar kit is ideal for keeping your starter or Leisure battery...
This is a powerful solar panel kit for motorhomes or small off-grid needs and is good for general needs. This solar kit is ideal for keeping your starter or Leisure battery charged. The panel measurements are 1485mm by 668 mm per panel, however, you will need to see the image attached for sizing for when installing these with corner and mid mounts.
This solar panel kit would provide charge to your leisure battery via the solar charge controller ensuring your battery maintains its optimal performance extending your off-grid adventure providing more power.
Did you know the average sun hours per day in the UK can range from just 1 hour in December to over 7 hours in June. On that basis we assume overall average of 4 hours per day your 230W Solar Panel could produce 920wh per day on average clearly more in summer than winter.
If you require a solar panel kit to provide more solar energy to your motorhome camper please follow this link https://callidus.shop/collections/motorhome
The PWM charge controller has a Liquid Crystal Display for ease of programming and also has two useful USB ports for charging phones or tablets. The PWM offers a Day/Night timing option this allows for a On-time after Dusk
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.
Day/night timing of the load output This option allows for a pre-set ON-time after dusk. Programmable battery charge algorithm Pre-programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only) Two 5 Volt USB outputs Maximum current (both outputs combined): 2A
Victron 115watt solar panels
Low voltage-temperature coefficient enhances high-temperature operation.
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance.
5-Year Limited Warranty on materials and workmanship.
Sealed, waterproof, multi-functional junction box gives a high level of safety.
High-performance bypass diodes minimize the power drop caused by shade.
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
This kit is fairly easy to install if you have basic DIY skills. We are always on hand to help if you need some guidance. There are a few handy videos for installation for you to watch if you need a few handy tips for installation.
Please feel free to call us on 01626 905454 where we will be able to offer you some assistance.

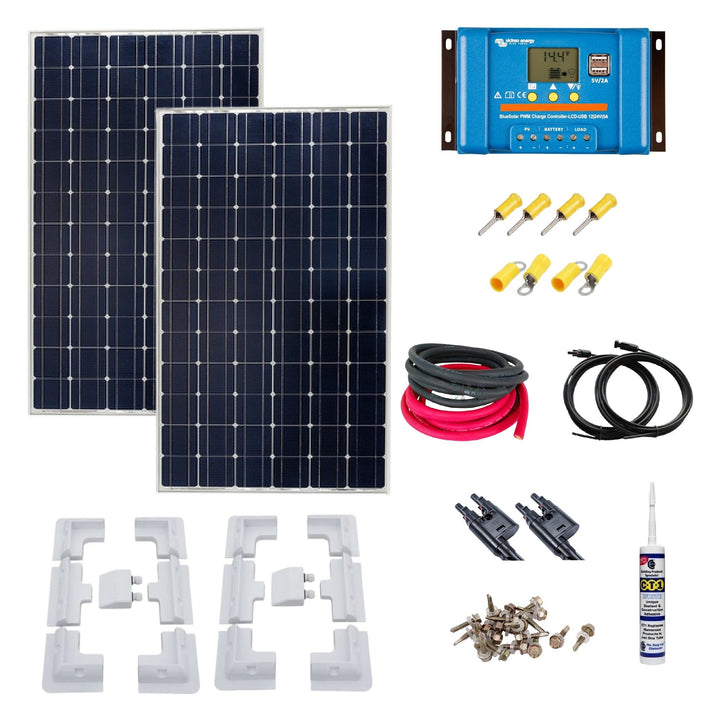

Whats in the Box
- Victron 2 X 115 Watt solar panel monocrystalline
- Victron solar charge controller with two USB ports for charging phones
- 2 x 6 piece roof fixings including cable gland for motorhome or caravan
- 1 pair of 5m solar extensions with MC4's.
- CT1 adhesive
- 4 x pin connectors
- 2 x 6mm lugs
- 2 x 8mm lugs
- 1 metre 6mm cable red for controller to battery
- 1 metre 6mm cable black for controller to battery
- Splitters
- Diagram
- Instructions
