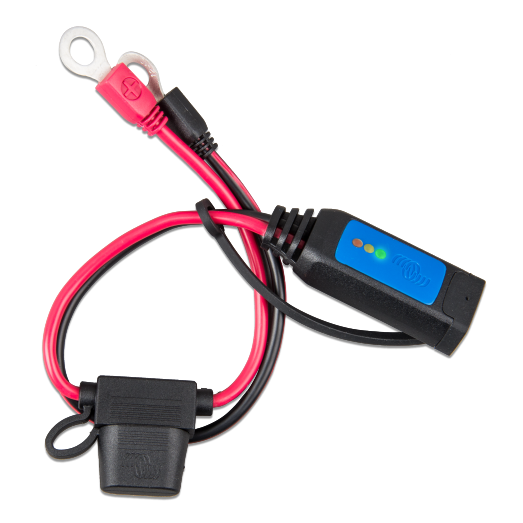

Victron Battery Indicator Eyelet (M8 eyelet / 30A ATO fuse)

The Victron Battery Indicator Eyelet provides a simple visual indication of your 12V lead-acid battery's charge status, helping to prevent over-discharge and extend battery life.

Universal Lead-Acid Compatibility: Suitable for use with all 12V lead-acid batteries, including flooded, GEL, and AGM types. Plug-and-Play Integration: Designed to work seamlessly with the Blue Smart and Blue Power IP65 Charger range. Robust Protection: Rated IP65 for resistance against water and dust, making it suitable for automotive, marine, and outdoor applications. Integrated Safety: Comes equipped with a 30A ATO fuse to protect the circuit. Secure Connection: The M8 eyelets provide a reliable, permanent connection point to your battery terminals.
£15.60 £13.65 SAVE £1.95
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: BPC900120114
IN STOCK
Receive between -

Frequently Bought Together

Total price:£546.00 £262.65
Product Details

The Victron Battery Indicator Eyelet (M8 / 30A ATO fuse) is an accessory designed for use with Victron's Blue Smart and Blue Power IP65 chargers. It is suitable for 12V lead-acid batteries, including flooded, GEL, and AGM types.

This compact device connects directly to the battery via M8 eyelet connectors and includes a 30A ATO fuse for protection. The indicator provides a clear visual status of the battery's charge level:

  • Green light: Battery is 80%-100% charged
  • Orange light: Battery is 60%-80% charged
  • Red light: Battery is 40%-60% charged
  • No light: Battery is less than 40% charged; immediate charging recommended to prevent sulfation

The indicator operates with a voltage range of 6-15V and has a low current drain of 0.9mA, ensuring minimal impact on the battery's charge.

This indicator is an essential tool for maintaining the health of your battery, providing immediate feedback on its status and helping to ensure reliable performance.

Product Specifications

Technical Specifications

  • SKU: BPC900120114
  • Voltage Range: 6V – 15V
  • Back Current Drain: 0.9 mA
  • Maximum Current: 30A
  • Cable Length: 0.3 Meters
  • Cable Diameter: 3.3 mm² (AWG12)
  • Dimensions: 22 x 18 x 55 mm
  • Battery Connection Type: M8 Eyelet connectors
  • Fuse: 30A ATO fuse
  • Weight: 0.17 kg
  • Protection Category: IP65

Status IndicationsThe indicator provides instant feedback on the battery's condition. For the most accurate reading, check the indicator approximately 30 minutes after battery use to allow it to reach a steady state.

  • Green Light: Battery is 80% – 100% charged (No charging needed).
  • Orange Light: Battery is 60% – 80% charged (Battery can be charged).
  • Red Light: Battery is 40% – 60% charged (Battery needs charging).
  • No Light: Battery is below 40% (Charge immediately to prevent sulfation).

Quality & Warranty

  • Warranty: Backed by Victron Energy’s standard 5-year warranty.
  • Manufacturing: Produced in accordance with ISO 9001 quality management certificates.
  • Support: Access to world-wide technical support through the Victron Energy dealer network.
