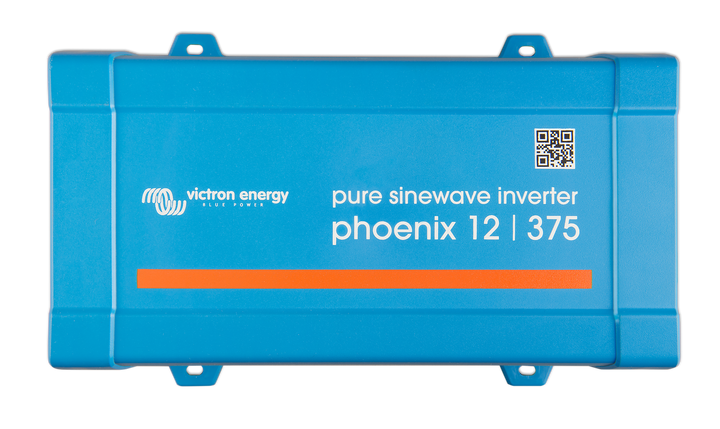

Victron 375VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct

The Victron Phoenix Inverter 12/375 230V VE.Direct UK is a compact, high-efficiency inverter designed to convert 12V DC to 230V AC. With a continuous output of 375VA, it delivers pure sine wave power suitable for sensitive electronics. The built-in VE.Direct port allows for easy monitoring and configuration via VictronConnect.

Reliable Power Conversion Remote Monitoring Space-Saving Design Ideal for off-grid, marine, and mobile power setups. Carton Dimensions: 150 x 210 x 300mm Enclosure Dimensions: 86 x 165 x 260mm Gross Weight: 3.75kg Nett Weight: 3.25kg
£148.80 £124.12 SAVE £24.68
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN121371400
IN STOCK
Receive between -

People Also Bought:

Frequently Bought Together

Total price:£440.40 £237.46
Product Details

The Victron Phoenix Inverter 12/375 230V VE.Direct UK is engineered for reliable and efficient power conversion in 12V DC systems. Delivering a continuous output of 375VA (approximately 300W), this inverter provides pure sine wave AC power, making it ideal for running sensitive equipment like laptops, TVs, and medical devices.

Key features include:

  • Pure Sine Wave Output: Ensures clean and stable power for sensitive electronics.
  • VE.Direct Connectivity: Enables remote monitoring and configuration via VictronConnect.
  • Compact Design: Space-saving dimensions for easy installation in various applications.
  • UK Plug: Direct compatibility with UK mains sockets for convenience.
  • Wide Application Range: Suitable for off-grid, marine, and mobile power systems.

Dimensions:

  • Enclosure Dimensions: 86 x 165 x 260mm
  • Carton Dimensions: 150 x 210 x 300mm
  • Nett Weight: 3.25kg
  • Gross Weight: 3.75kg
Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 12 V
  • Continuous Power at 25°C: 375 VA
  • Peak Power: 700 W
  • Output AC Voltage / Frequency: 230 VAC or 120 VAC +/- 3% (50 Hz or 60 Hz +/- 0.1%)
  • Input Voltage Range: 9.2 – 17 V
  • Maximum Efficiency: 89%
  • Zero-load Power: 5.6 W
  • Default Zero-load Power in ECO Mode: 0.9 W (default retry interval: 2.5 s)

Configurable Features & Monitoring

  • VE.Direct Communication Port: Allows connection to a computer (via VE.Direct to USB cable) or smartphones/tablets (via VE.Direct Bluetooth Smart dongle) for full setup and monitoring.
  • Fully Configurable Parameters:
    - Low battery voltage alarm trip and reset levels.
    - Low battery voltage cut-off and restart levels.
    - Dynamic cut-off: Load-dependent cut-off level.
    - Output voltage: 210 – 245 V.
    - Frequency: 50 Hz or 60 Hz.
    - ECO mode on/off and ECO mode sense level.
  • Monitoring Capabilities: Track in- and output voltage, % load, and active alarms.
  • ECO Mode: When active, the inverter switches to standby when the load decreases below 15W. It briefly switches on every 2.5 seconds (adjustable) to check if the load has increased.
  • Remote On/Off: Includes a two-pole connector for a remote switch or battery-plus connection.

Mechanical Specifications

  • Dimensions (H x W x D): 86 x 165 x 260 mm (3.4 x 6.5 x 10.2 inches)
  • Weight: 3.0 kg (6.6 lbs)
  • Enclosure Material & Colour: Steel chassis and plastic cover (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: Screw terminals
  • Maximum Cable Cross-section: 10 mm² (AWG8)
  • Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), or AU/NZ (AS/NZS 3112).

Environmental & Protection

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
  • Humidity: Max 95% non-condensing
  • Integrated Electronic Protection:
     - Output short circuit
    - Overload
    - Battery voltage too high / too low
    - Temperature too high
    - DC ripple too high

Standards & Certifications

  • Safety: EN-IEC 60335-1 / EN-IEC 62109-1
  • EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
  • Automotive Directive: ECE R10-4
