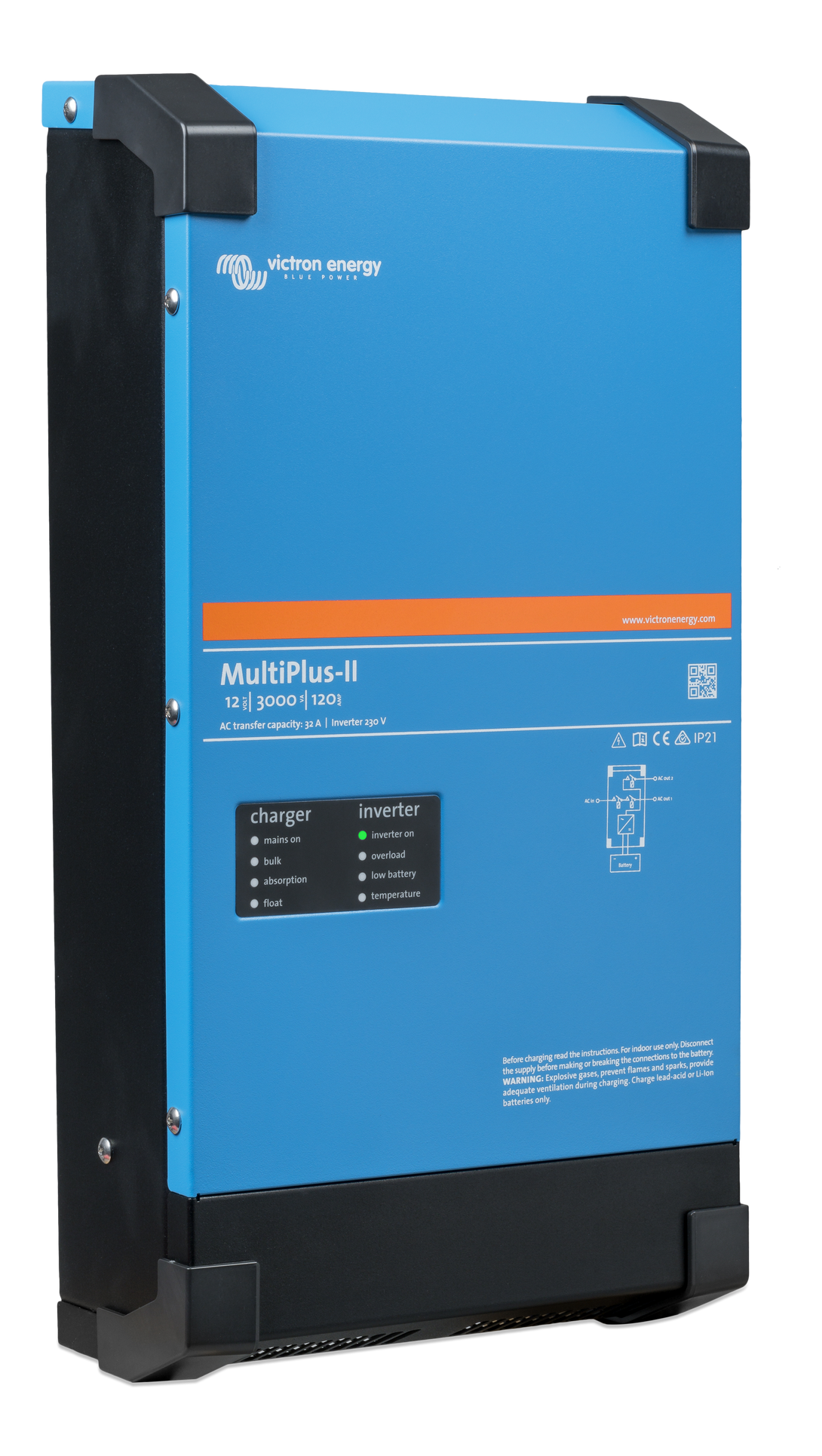

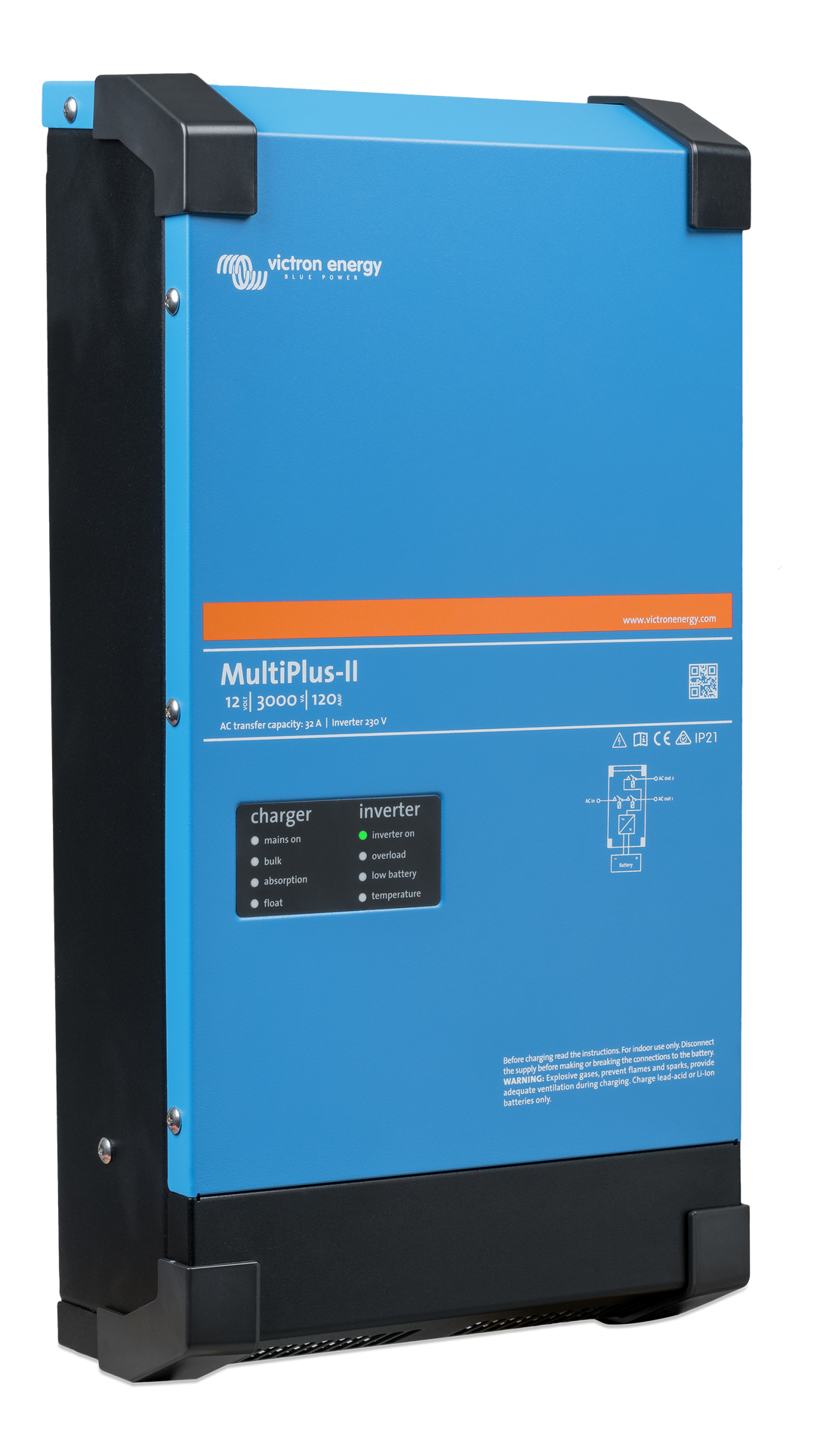

Callidus Trade: Victron Energy MultiPlus-II inverter/charger in blue colour with product information and branding on the front panel.

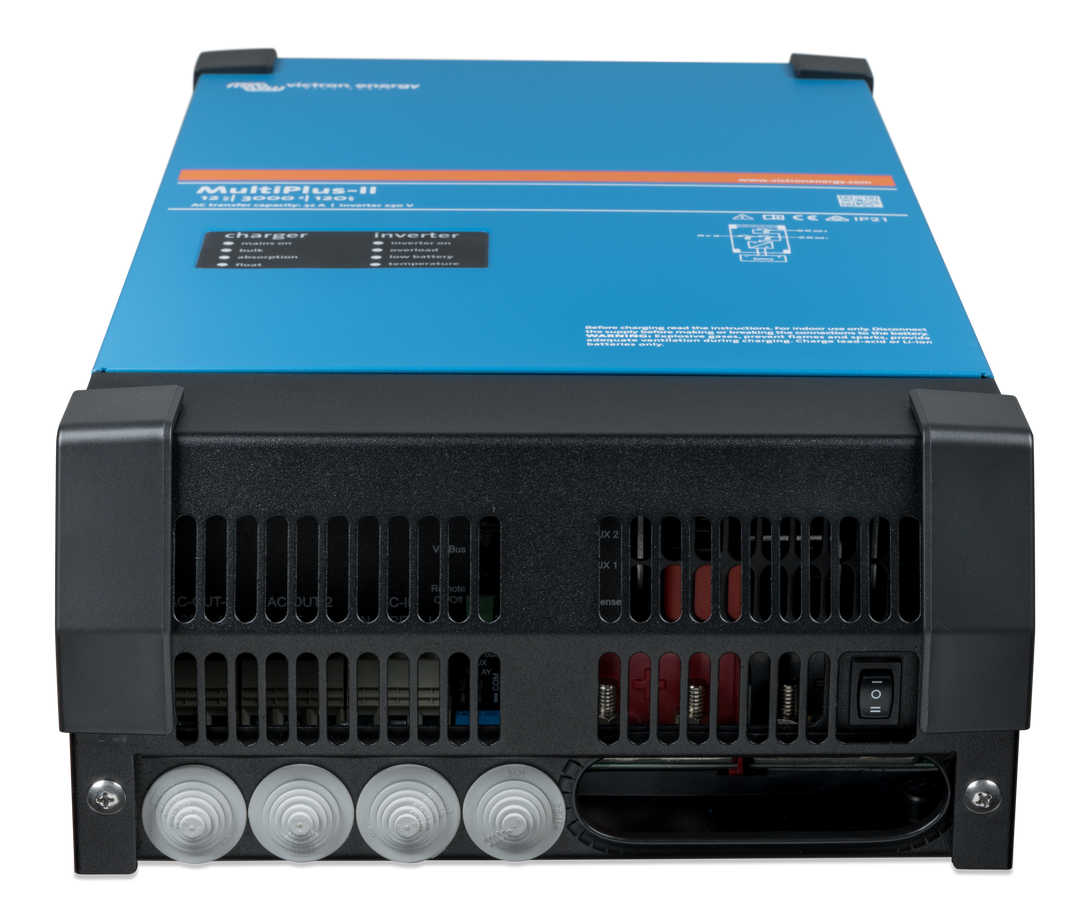

Callidus Trade: Victron Energy MultiPlus-II inverter/charger in blue colour with product information and branding on the front panel.

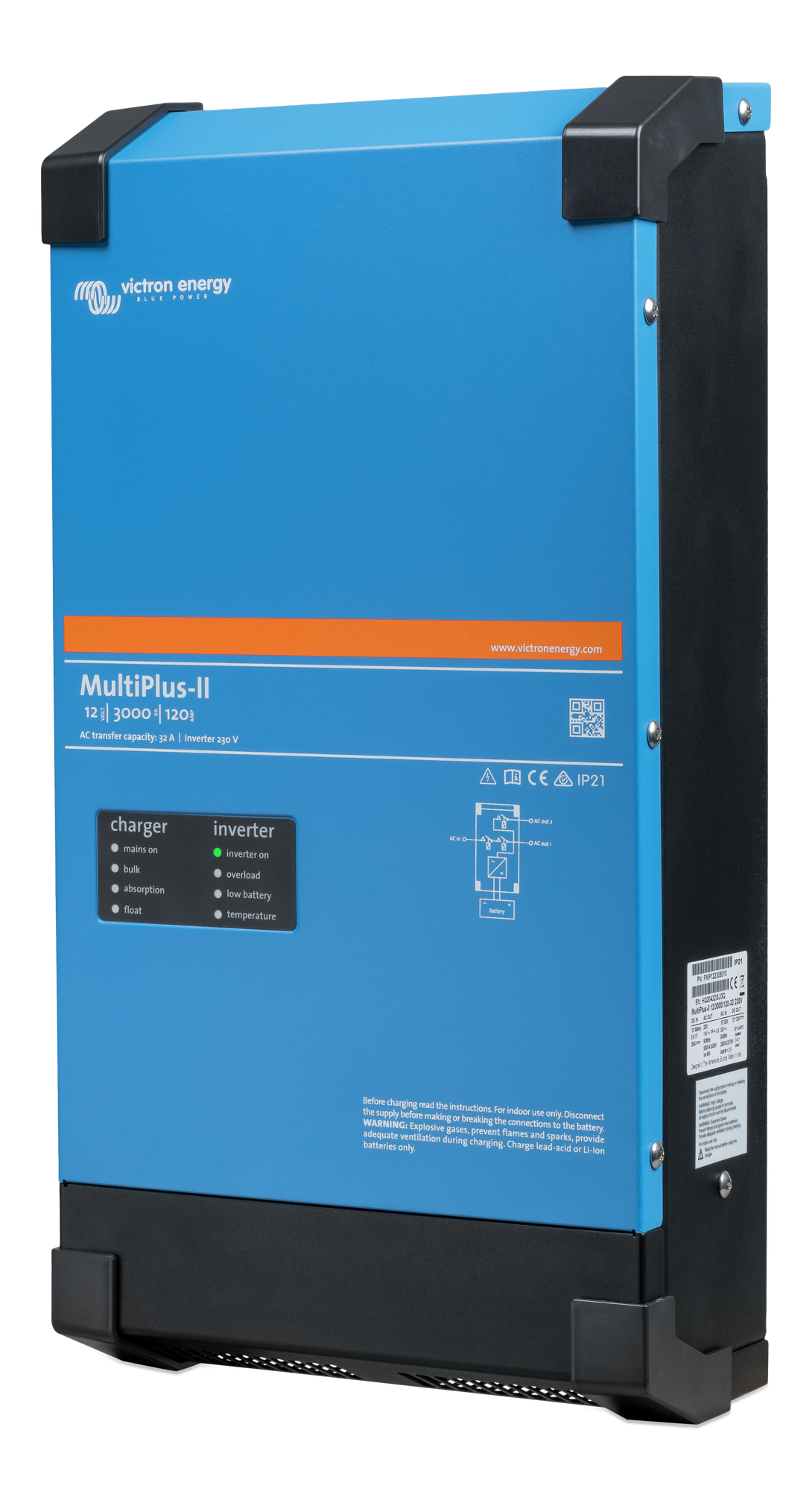

Callidus Trade: Victron Energy MultiPlus-II inverter/charger in blue colour with product information and branding on the front panel.

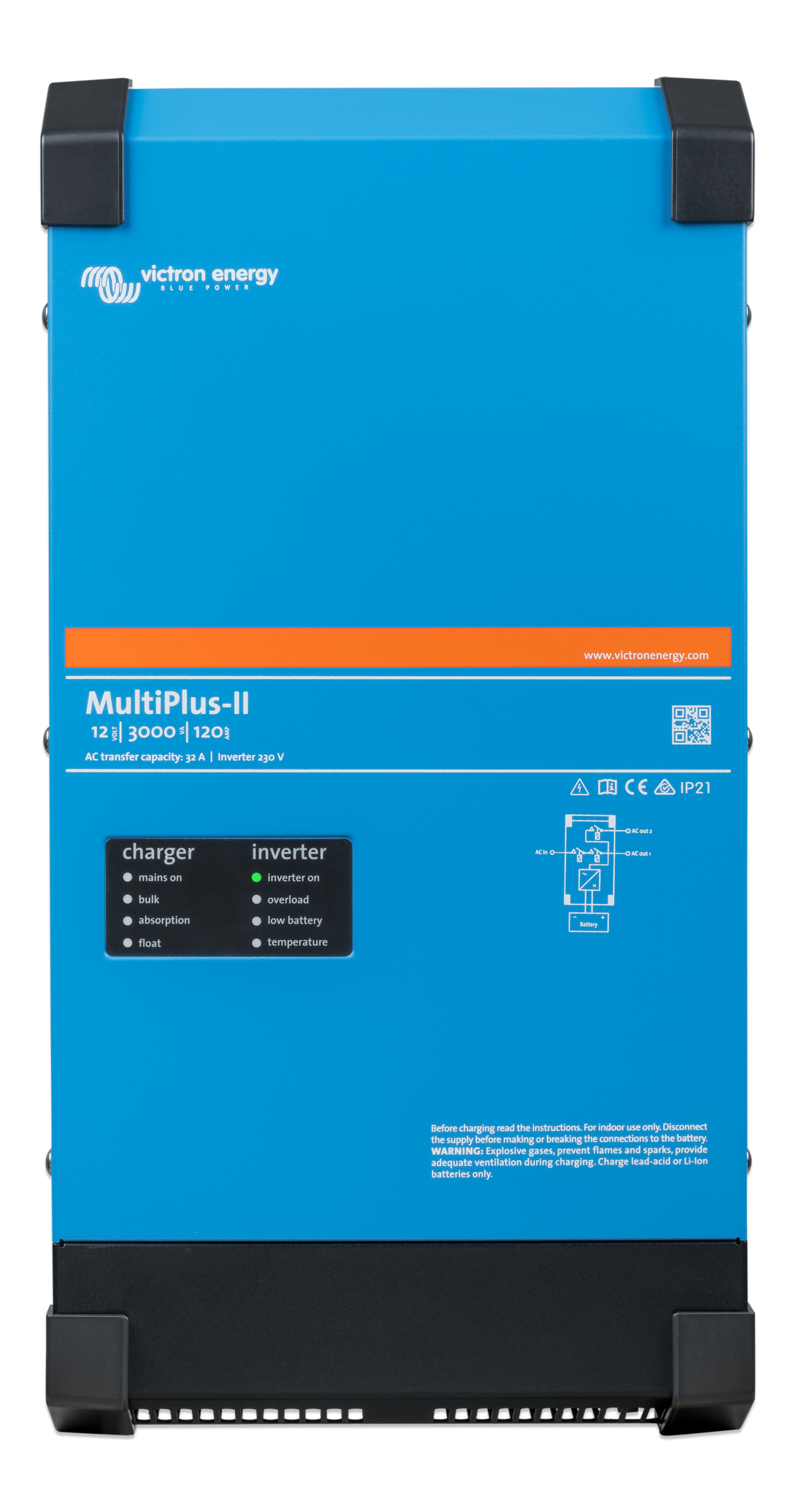

Callidus Trade: Victron Energy MultiPlus-II inverter/charger in blue colour with product information and branding on the front panel.
Callidus Trade: Victron Energy Multiplus-II Introduction video
Fast Delivery
Expert Support

Victron Energy MultiPlus-II 12V 3000VA 120A 32A – PMP122305010

PMP122305010 - The Victron MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications.

£1,282.00 £925.25 SAVE £356.75
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP122305010
IN STOCK
Receive between -
Who's it for?

The Victron MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications.

Product Details

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.



Features

A MultiPlus, plus ESS (Energy Storage System) functionality

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.



PowerControl and PowerAssist – Boosting the capacity of the grid or a generator

A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.



Solar energy: AC power available even during a grid failure

The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.



Two AC Outputs

The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.



Virtually unlimited power thanks to parallel and three phase operation (not available for the 8k and 10k models)

Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.



On-site system configuring, monitoring and control

Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.



Remote configuring and monitoring

Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

Product Specifications

Technical Specifications

Combined for SKUs: PMP122305010

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: Please consult the certificates on our website

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts

Battery Voltage Nominal: 12 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 14.4 VDC

Charge Voltage Float: 28.8 VDC

Charge Voltage Storage: 57.6 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

DC Input Voltage Range: [9.5, 17] VDC

Depth: 147 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 546 mm

Material: Steel

Max Ac Input Current: 32 A

Max Altitude: 2,000 m

Max Apparent Feed-in Power: 3,000 VA

Max Efficiency: 93 %

Max Humidity: 95 %

Maximum Battery Charge Current: 120 A

Parallel Operation: Yes

Peak Power Rating: 5,500 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 32 A

Ups Standard: Please consult the certificates on our website

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 19 kg

Width: 275 mm

Zero Load Power: 13 W

Zero Load Power (AES): 9 W

Zero Load Power (Search): 3 W

Source: Victron
